SSP Unilok Female Connector - C-276 Alloy, 1/8 Tube x 1/8-27 FNPT
SSP Unilok Female Connector - C-276 Alloy, 1/8 Tube x 1/8-27 FNPT
SKU:HEM-e5612a
Highly durable SSP Unilok Female Connector - C-276 Alloy, 1/8 Tube x 1/8-27 FNPT, ideal for instrumentation use.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
SSP Unilok Female Connector - C-276 Alloy, 1/8 Tube x 1/8-27 FNPT
$25.99
Quantity: 1
Claim Your Seller Account
SSP Unilok Female Connector - C-276 Alloy, 1/8 Tube x 1/8-27 FNPT
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSP Unilok Female Connector features high-quality C-276 alloy construction, ensuring exceptional durability and corrosion resistance. With a 1/8 inch tube fitting on one end and a 1/8-27 FNPT on the other, this connector offers a reliable and leak-free connection. Its straight shape and precise dimensions make it ideal for instrumentation applications. Trust in the Unilok brand for superior performance and long-lasting reliability.
Product Specifications
Attributesoptions Attributesoptions
Meet or exceed the MIL-STD-188-125-1 requirementsInductive InputChoice of Termination ConfigurationsQuick Disconnect Terminal TabsThreaded StudsConnectorsCan be supplied with HEMP Protection ModulesSupplied with Certified PCI data upon requestExisting Designs for:Other Power Lines (Intersite)Audio/Data Lines (Intersite)Control/Signal Lines (Intersite)Existing Applications include:AC/DC powerTelephone LinesAnalog Fire AlarmsServo MotorsSynchro TransmitterCustom tailoring for your unique application
Electrical Ratings Current
1/2 A
Electrical Ratings Dcr
⤠6.1 Ω
Electrical Ratings Dwv Dc
600 V
Electrical Ratings Frequency
DC-60 Hertz
Electrical Ratings Mil Std 220 Insertion Loss Limit
100 dB Minimum from 14 kHz through 10 GHz
Electrical Ratings Passband Response Limit
0 to 3000 Hertz, 1 dB | 0 to 3500 Hertz, 3 dB
Electrical Ratings Voltage Peak
187
Electrical Ratings Voltage Vrms
132
Pci Hemp Parameters Common Mode Peak Short Circuit Current
5000 A
Pci Hemp Parameters Common Mode Residual Peak Current
⤠1.0 A
Pci Hemp Parameters Common Mode Source Impedance
⥠60 Ω
Pci Hemp Parameters Type
Short Pulse
Pci Hemp Parameters Type Of Injection
Common Mode | Wire-to-ground
Pci Hemp Parameters Wire To Ground Load Impedance
50 Ω
Pci Hemp Parameters Wire To Ground Peak Short Circuit Current
3536 A
Pci Hemp Parameters Wire To Ground Residual Peak Current
⤠1.0 A
Pci Hemp Parameters Wire To Ground Source Impedance
⥠60 Ω
Specifications Corrosion
Hermetically sealed steel or aluminum enclosures with tin-lead plating

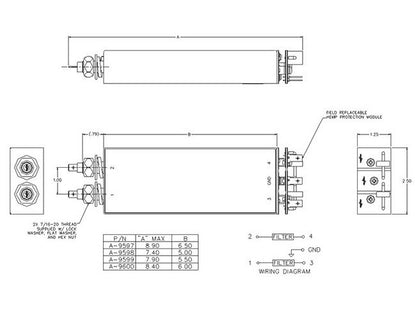

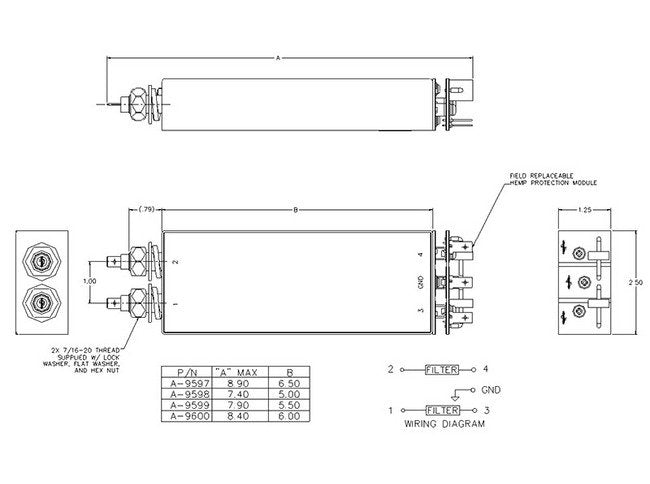

Specifications Dimension B
5.50 in
Specifications Fungus
Non-nutritive materials are used
Specifications Humidity
10 to 90 %
Specifications Maximum Altitude
15000 ft
Specifications Maximum Dimension A
7.90 in
Specifications Note
With HEMP protection devices removed.600 Ω line to line and 300 Ω line to ground.Full load from 100 KHz to 20 MHz.
Specifications Operating Temperature
-40 to +71 ºC
Specifications Storage Temperature
-55 to +105 ºC
Specifications Voltage
0 to 480 V
