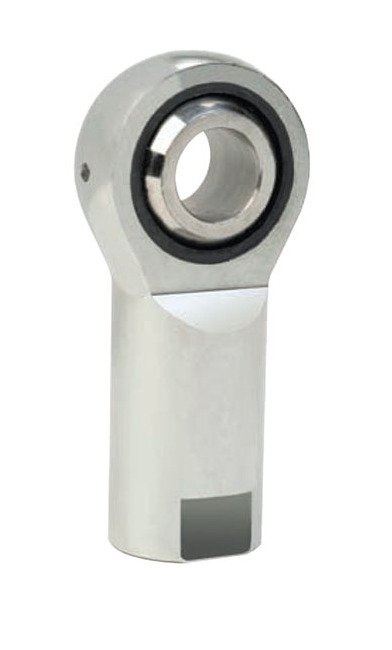

• SSPM/SSPF Stainless Steel Rod Ends - Image 1
  • SSPM/SSPF Stainless Steel Rod Ends - Image 2
  • SSPM/SSPF Stainless Steel Rod Ends - Image 3
1 3
Lexco Cable Manufacturing →

SSPM/SSPF Stainless Steel Rod Ends

SSPM/SSPF Stainless Steel Rod Ends

PUS-afd04c

Durable SSPM/SSPF Rod Ends for various mechanical applications, offering wear resistance and moisture protection.

$29.99
$29.99
Sale

Initiate Order

SSPM/SSPF Stainless Steel Rod Ends

SSPM/SSPF Stainless Steel Rod Ends

$29.99

Quantity: 1

Claim Your Seller Account

SSPM/SSPF Stainless Steel Rod Ends

SSPM/SSPF Stainless Steel Rod Ends

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The SSPM/SSPF Rod Ends from our Push-Pull Controls collection offer unmatched durability and versatility. Constructed with stainless steel and a molded self-lubricating reinforced nylon race, these rod ends are designed for applications requiring excellent wear resistance and moisture resistance. Featuring a ball bore of 0.2500", this type-Female rod end has a temperature range of -30 to 220 °F, making it suitable for marine, construction, and recreational vehicle applications. With an ultimate radial static load capacity of 2470 lb, this rod end ensures reliable performance in various mechanical motion transfer devices. Customize your assemblies according to your needs, as these rod ends meet SAE spec J1120.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications 0
Numerous mechanical motion transfer devices/applications, including:MarineConstruction equipmentRecreational vehicles (ATV's, golf carts, etc.)Truck/off highway
Features 0
Stainless steel construction for extra corrosion protectionNylon molded race delivers self-lubricating low friction and moisture-resistant performanceGood wear resistanceDesign allows for control of breakaway torque, adding to its application versatilityCan be used in a wide range of temperatures: -30 ºF - 220 ºF (-34 ºC - 104 ºC)Offered in studded and right or left-handed versionsCustom assemblies can be built to your specificationsMeets SAE spec J1120
Material 0
Ball - Stainless SteelBody - Stainless SteelRace - Molded Self-Lubricating Reinforced NylonStud (optional) - Stainless Steel
Specifications Additional Options
Studded Configuration
Specifications Ball Bore B 00020 00000
0.2500 "
Specifications Ball Diameter Ref
0.516 "
Specifications Ball Width W 0005
0.375 "
Specifications Centerline Length A 0015
1.312 "
Specifications Head Diameter D 0015
0.750 "
Specifications Housing Width H Ref
0.281 "
Specifications Note
This series is also available in a studded configuration. Specify by adding "S" to suffix. Example: SSPF8S
Specifications Shank Diameter K 0015
0.469 "
Specifications Temperature Range
-30 to 220 ºF | -34 to 104 ºC
Specifications Thread Length C 0060
0.750 "
Specifications Type
Female
Specifications Ultimate Radial Static Load Capacity
2470 lb
Specifications Unf 2
1/4-28 "
Specifications Weight
0.059 lb
Specifications Wrench Flat Length F 0030
0.281 "
Specifications Wrench Flat Width J 0015
0.375 "
Studded Dimensions L Ref
0.469 "
Studded Dimensions Min Thread Length S
0.500 "
Studded Dimensions P 0030
0.563 "
Studded Dimensions Rod End Bore Size
1/4 "
Studded Dimensions Thread Size N Unf 2a
1/4-28 "
CAGE
0T9L4
NAICS
332510
PSC
4030
