SSWCI 3/8 Inch Tube Socket Weld Connector Fitting
SSWCI 3/8 Inch Tube Socket Weld Connector Fitting
SKU:SSW-7ddbb5
High-performance 3/8 Inch Tube Socket Weld Connector Fitting for precise tube connections in demanding environments.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SSWCI 3/8 Inch Tube Socket Weld Connector Fitting
$39.99
Quantity: 1
Claim Your Seller Account
SSWCI 3/8 Inch Tube Socket Weld Connector Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

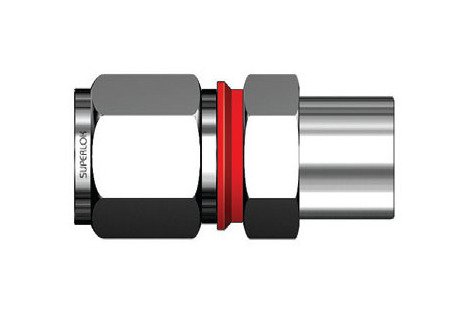

The SSWCI Series 3/8 Inch Tube Socket Weld Connector Fitting is a precision-engineered solution for connecting fractional tubes. Crafted from high-quality materials such as Alloy 625, Stainless Steel, and more, it ensures durability and reliability. Featuring i-Fitting® components with a patented design by BMT, it enhances installer safety, increases productivity, and reduces costs. The built-in gap gauge check ring prevents over- and under-tightening issues, making it ideal for high-pressure and hazardous chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

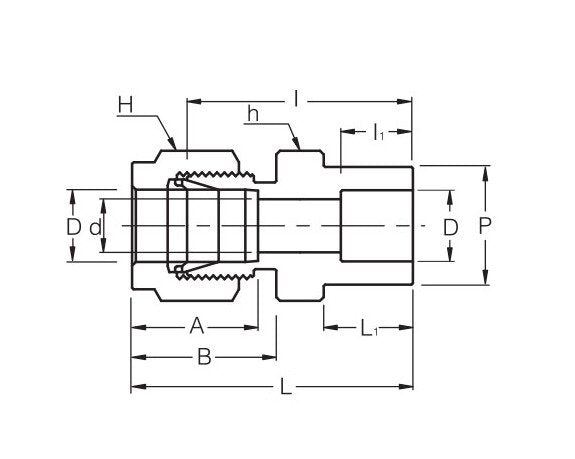

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
30.22 mm
Technical Specs Dimension I1
9.65 mm
Technical Specs Dimension L
37.59 mm
Technical Specs Dimension L1
11.93 mm
Technical Specs Dimension P
15.74 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
