SSWCI Series 1/2 Inch Tube Socket Weld Connector Fitting
SSWCI Series 1/2 Inch Tube Socket Weld Connector Fitting
SKU:SSW-3461c1
Achieve precise tube connections with the high-performing SSWCI Series 1/2 Inch Tube Socket Weld Connector Fitting. Enhance safety and efficiency!
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
SSWCI Series 1/2 Inch Tube Socket Weld Connector Fitting
$35.99
Quantity: 1
Claim Your Seller Account
SSWCI Series 1/2 Inch Tube Socket Weld Connector Fitting
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

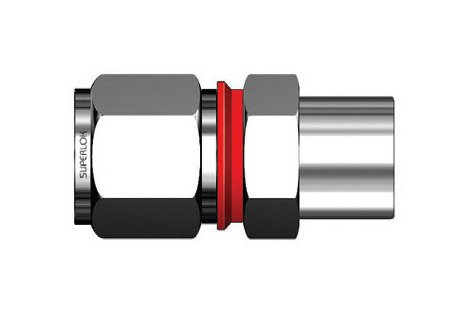

The SSWCI Series 1/2 Inch Tube Socket Weld Connector Fitting is designed to connect fractional tubes with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this fitting features an innovative i-Fitting® design that ensures perfect compression, improves installer safety in high-pressure environments, and enhances overall productivity. With dimensions meeting industry standards and a patented check ring for accurate tightening, this connector is ideal for valve connections in diverse applications. Upgrade to the SSWCI Series for exceptional performance and durability.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

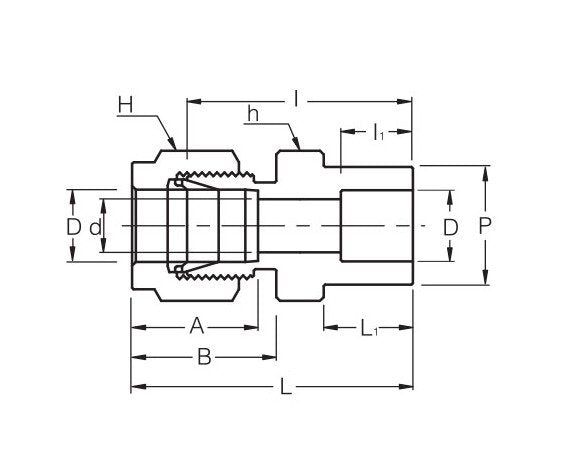

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.86 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
30.98 mm
Technical Specs Dimension I1
12.70 mm
Technical Specs Dimension L
41.14 mm
Technical Specs Dimension L1
11.93 mm
Technical Specs Dimension P
19.05 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
10.41 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/2 in
Technical Specs Width Across Flat H
7/8 in
