SSWCI Series 1/4in Tube Socket Weld Connector Fitting
SSWCI Series 1/4in Tube Socket Weld Connector Fitting
SKU:SSW-ec12e2
Enhance tube connections with precision using the SSWCI 1/4in Socket Weld Fitting for optimal safety and productivity.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SSWCI Series 1/4in Tube Socket Weld Connector Fitting
$49.99
Quantity: 1
Claim Your Seller Account
SSWCI Series 1/4in Tube Socket Weld Connector Fitting
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

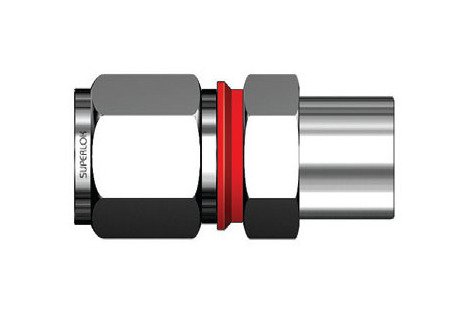

The SSWCI Series 1/4in Tube Socket Weld Connector Fitting is a precision-engineered solution designed to connect fractional tubes seamlessly. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability in diverse environments. Its innovative i-Fitting® components, featuring a built-in check ring for precise compression, enhance safety, productivity, and cost-effectiveness. Ideal for valve connections, this industry-changing design by BMT sets a new standard in efficiency.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

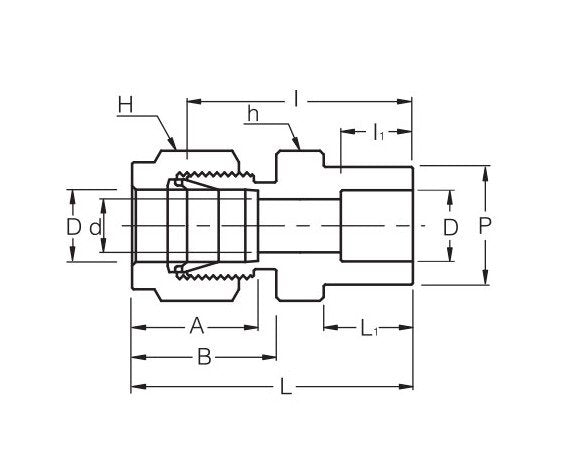

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
26.16 mm
Technical Specs Dimension I1
7.87 mm
Technical Specs Dimension L
33.52 mm
Technical Specs Dimension L1
10.41 mm
Technical Specs Dimension P
11.17 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
