SSWCI Series 1" Tube Socket Weld Connector Fitting

Name: SSWCI Series 1" Tube Socket Weld Connector Fitting
Brand: Superlok-Mako Products LLC
SKU: SSW-a45194
Price: 39.99 USD
Availability: OutOfStock

SKU:SSW-a45194

Enhance tube connections with precision and safety using the SSWCI Series 1" Tube Socket Weld Connector Fitting. Patented design ensures perfect compression for increased safety and productivity.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

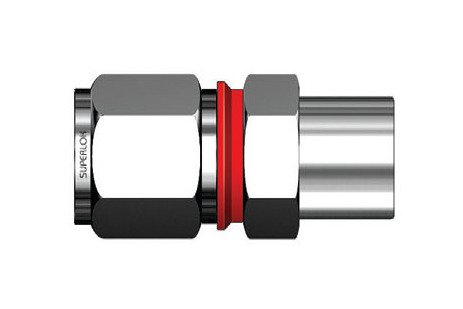

The SSWCI Series 1" Tube Socket Weld Connector Fitting is designed to connect fractional tubes with precision and efficiency. Constructed from high-quality materials including Alloy 625, Alloy 825, Carbon Steel, and more, this fitting ensures durability and reliability in industrial applications. Featuring i-Fitting components, including a unique check ring for perfect compression, this fitting enhances installer safety, productivity, and cost-efficiency. With its patented design by BMT, this connector is ideal for high-pressure and chemical environments, offering a secure and industry-compliant solution.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

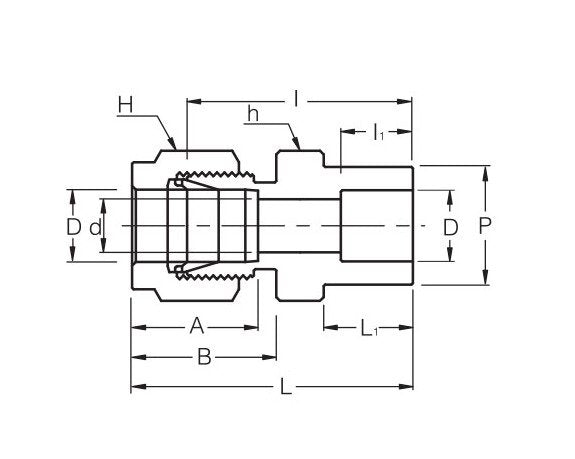

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Dimension A

31.24 mm

Technical Specs Dimension B

26.41 mm

Technical Specs Dimension I

40.38 mm

Technical Specs Dimension I1

19.05 mm

Technical Specs Dimension L

52.57 mm

Technical Specs Dimension L1

14.22 mm

Technical Specs Dimension P

33.27 mm

Technical Specs Material

Technical Specs Minimum Dimension D

22.35 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Tube Outside Diameter D

1 in

Technical Specs Width Across Flat H

1-1/2 in
