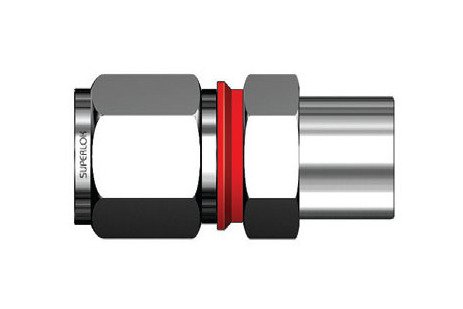

SSWCI Series 18mm Tube Socket Weld Connector Fitting

SSWCI Series 18mm Tube Socket Weld Connector Fitting

SKU:SSW-ce6e8f

Enhance tube connections with the precision-engineered SSWCI 18mm Socket Weld Fitting for safety & productivity in high-pressure environments.

Regular price $34.99
Regular price Sale price $34.99
Sale

Initiate Order

SSWCI Series 18mm Tube Socket Weld Connector Fitting

SSWCI Series 18mm Tube Socket Weld Connector Fitting

$34.99

Quantity: 1

Claim Your Seller Account

SSWCI Series 18mm Tube Socket Weld Connector Fitting

SSWCI Series 18mm Tube Socket Weld Connector Fitting

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The SSWCI Series 18mm Tube Socket Weld Connector Fitting is designed to seamlessly connect metric tubes with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and longevity. Its patented i-Fitting® design features a built-in gap gauge for perfect compression, enhancing safety in high-pressure environments while streamlining installation. With dimensions meeting industry standards and compatibility with valve connections, this fitting offers efficiency, cost-effectiveness, and performance.

Product Specifications

Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

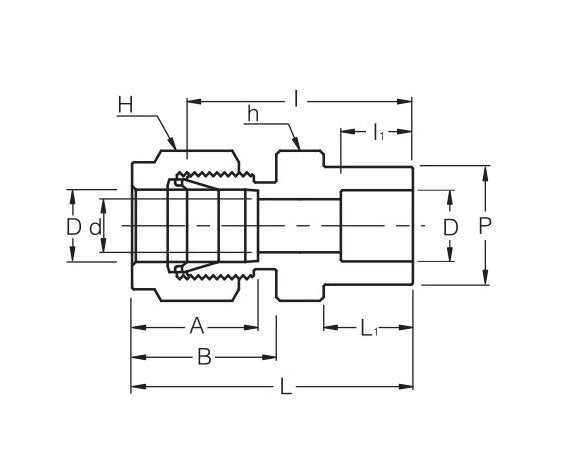

Technical Specs Dimension A
24.3 mm
Technical Specs Dimension B
21.8 mm
Technical Specs Dimension I
33.3 mm
Technical Specs Dimension I1
14.20 mm
Technical Specs Dimension L
43.4 mm
Technical Specs Dimension L1
11.9 mm
Technical Specs Dimension P
26.67 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.1 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
18 mm
Technical Specs Width Across Flat H
28.6 mm
