SSWEI 1/2in Tube Socket Weld Elbow - Alloy 625/825/ C-276/Aluminum/Brass/Carbon Steel/Stainless Steel

Name: SSWEI 1/2in Tube Socket Weld Elbow - Alloy 625/825/ C-276/Aluminum/Brass/Carbon Steel/Stainless Steel
Brand: Superlok-Mako Products LLC
SKU: SSW-d77278
Price: 24.99 USD
Availability: OutOfStock

SKU:SSW-d77278

Precision tube connection elbow for secure and leak-free valve applications. Industry-leading safety and efficiency.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

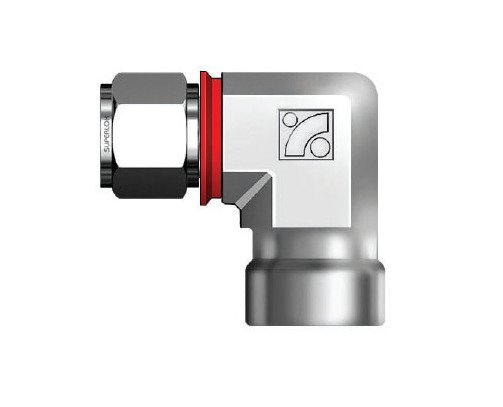

The SSWEI Series 1/2 Inch Tube Socket Weld Elbow is designed to connect fractional tubes with precision and reliability. Crafted from a range of high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this elbow ensures durability and resistance to corrosion. Its unique i-Fitting® components, featuring a built-in gap gauge and ensuring perfect compression, enhance safety and efficiency in high-pressure industrial applications. With dimensions that conform to industry standards, this elbow is suitable for valve connections, providing a secure and leak-free solution.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

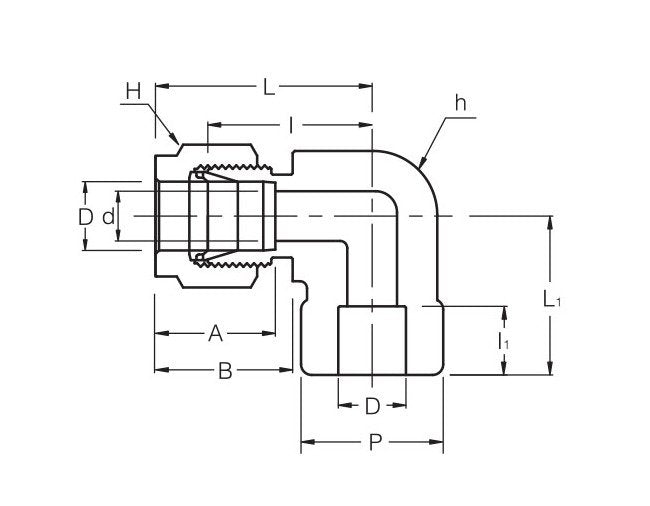

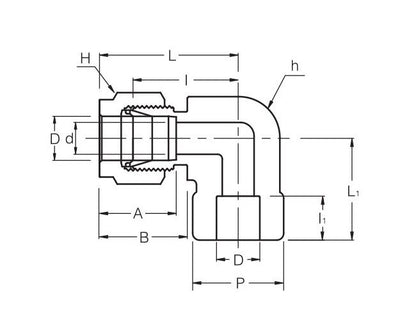

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Dimension A

22.86 mm

Technical Specs Dimension B

21.84 mm

Technical Specs Dimension I

25.9 mm

Technical Specs Dimension I1

12.70 mm

Technical Specs Dimension L

36.06 mm

Technical Specs Dimension L1

25.9 mm

Technical Specs Dimension P

20.57 mm

Technical Specs Material

Technical Specs Minimum Dimension D

10.41 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Tube Outside Diameter D

1/2 in

Technical Specs Width Across Flat H

7/8 in
