SSWEI 3/4in Tube Socket Weld Elbow | Alloy & Steel
SSWEI 3/4in Tube Socket Weld Elbow | Alloy & Steel
SKU:SSW-4360f7
Enhance tube connections with SSWEI 3/4in Elbow. Patented design for safety & precision. Alloy & Steel options.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SSWEI 3/4in Tube Socket Weld Elbow | Alloy & Steel
$49.99
Quantity: 1
Claim Your Seller Account
SSWEI 3/4in Tube Socket Weld Elbow | Alloy & Steel
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

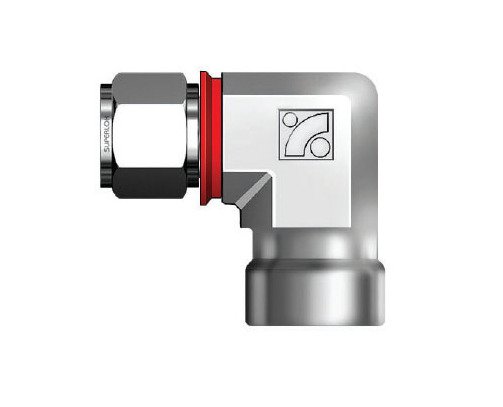

The SSWEI Series 3/4 Inch Tube Socket Weld Elbow is designed for connecting fractional tubes with precision and efficiency. Made from high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, it features innovative i-Fitting® components for enhanced safety and productivity. This elbow incorporates a patented check ring for optimal compression, addressing tightening errors and ensuring installer safety in high-pressure environments. With dimensions ranging from 1/4 to 1 inch, it offers industry-leading performance and reliability for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

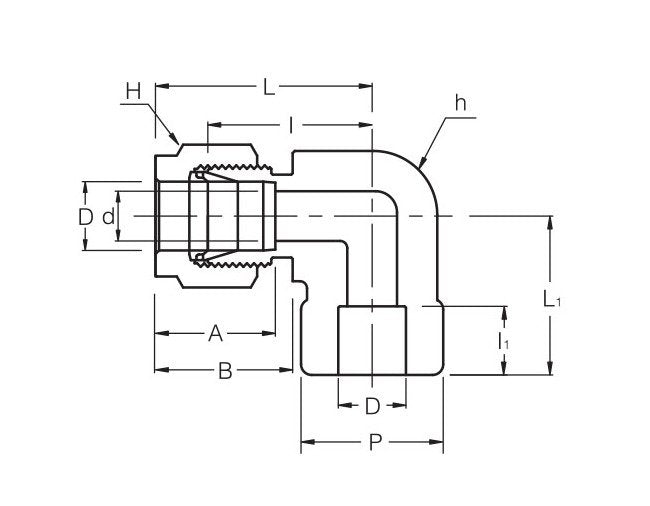

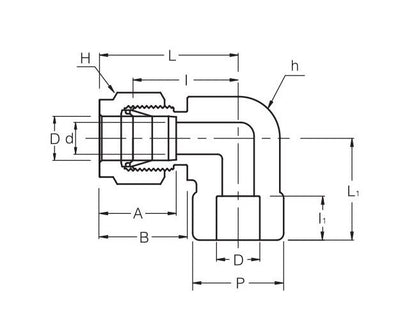

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
24.38 mm
Technical Specs Dimension B
21.84 mm
Technical Specs Dimension I
29.71 mm
Technical Specs Dimension I1
14.22 mm
Technical Specs Dimension L
39.87 mm
Technical Specs Dimension L1
29.71 mm
Technical Specs Dimension P
26.92 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.74 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/4 in
Technical Specs Width Across Flat H
1-1/8 in
