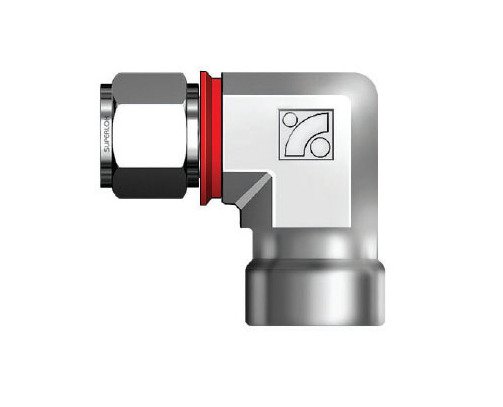

SSWEI 3/8in Tube Socket Weld Elbow, Alloy 625/825/ C-276/Stainless Steel
SSWEI 3/8in Tube Socket Weld Elbow, Alloy 625/825/ C-276/Stainless Steel
SKU:SSW-01a45f
High-quality SSWEI 3/8in Tube Socket Weld Elbow with i-Fitting® components for secure connections in high-pressure environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SSWEI 3/8in Tube Socket Weld Elbow, Alloy 625/825/ C-276/Stainless Steel
$34.99
Quantity: 1
Claim Your Seller Account
SSWEI 3/8in Tube Socket Weld Elbow, Alloy 625/825/ C-276/Stainless Steel
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSWEI Series 3/8 Inch Tube Socket Weld Elbow is expertly crafted to connect fractional tubes with precision. Made from top-grade Alloy 625, Alloy 825, Alloy C-276, and Stainless Steel materials, this elbow ensures durability and reliability in high-pressure and chemical environments. Featuring i-Fitting® components and a patented design by BMT, this elbow boasts a built-in gap gauge for perfect compression, enhancing installer safety, productivity, and cost-efficiency. With dimensions compliant with industry standards, this elbow guarantees a secure and efficient connection every time.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

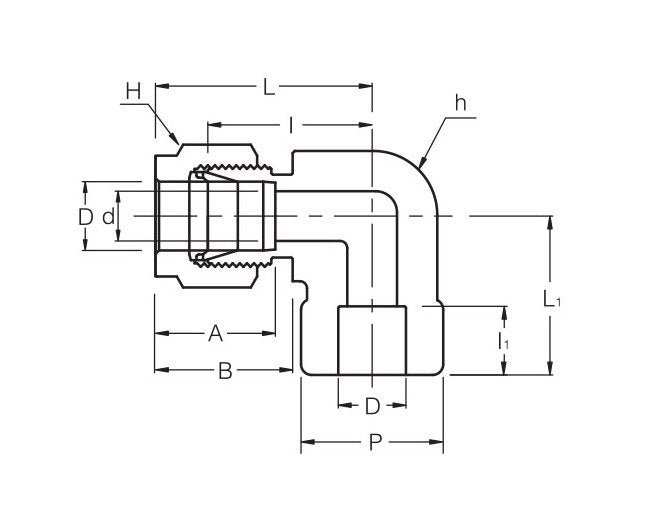

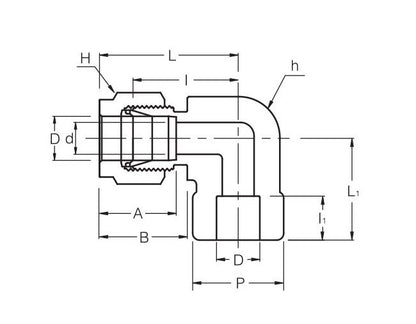

Technical Specs Dimension A
16.76 mm
Technical Specs Dimension B
19.30 mm
Technical Specs Dimension I
23.11 mm
Technical Specs Dimension I1
9.65 mm
Technical Specs Dimension L
30.48 mm
Technical Specs Dimension L1
23.11 mm
Technical Specs Dimension P
15.75 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
7.11 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
3/8 in
Technical Specs Width Across Flat H
11/16 in
