SSWEI Series 1" Tube Socket Weld Elbow - Alloy & Stainless Steel
SSWEI Series 1" Tube Socket Weld Elbow - Alloy & Stainless Steel
SKU:SSW-0f1c40
High-quality 1" Tube Socket Weld Elbow for precise compression and safety in industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SSWEI Series 1" Tube Socket Weld Elbow - Alloy & Stainless Steel
$29.99
Quantity: 1
Claim Your Seller Account
SSWEI Series 1" Tube Socket Weld Elbow - Alloy & Stainless Steel
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

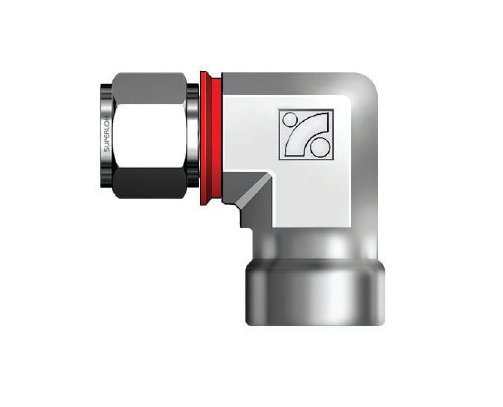

The SSWEI Series 1 Inch Tube Socket Weld Elbow is a robust industrial fitting that securely connects fractional tubes. Crafted from high-grade materials like Alloy 625, Stainless Steel, and more, this elbow ensures durability in high-pressure and chemical environments. Its patented i-Fitting® design guarantees precise compression, enhancing installer safety and productivity. With dimensions meeting stringent industry standards, this elbow is a reliable solution for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

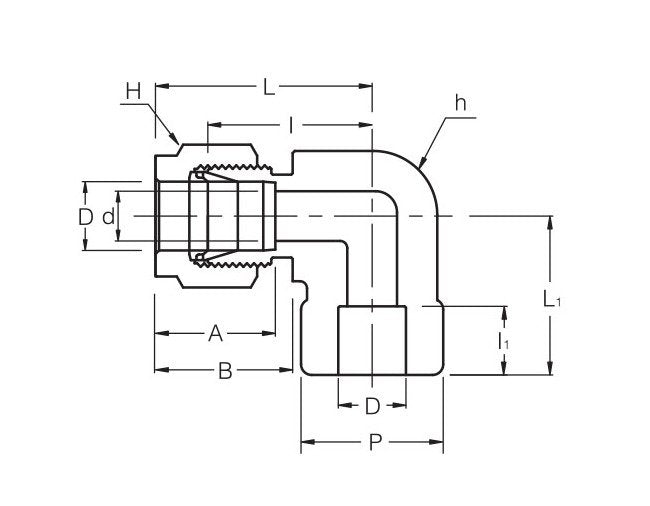

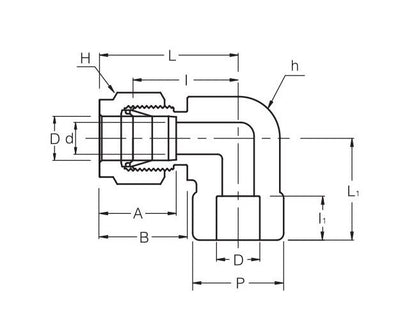

Technical Specs Dimension A
31.24 mm
Technical Specs Dimension B
26.41 mm
Technical Specs Dimension I
36.83 mm
Technical Specs Dimension I1
19.05 mm
Technical Specs Dimension L
49.02 mm
Technical Specs Dimension L1
36.83 mm
Technical Specs Dimension P
35.05 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
22.35 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Width Across Flat H
1-1/2 in
