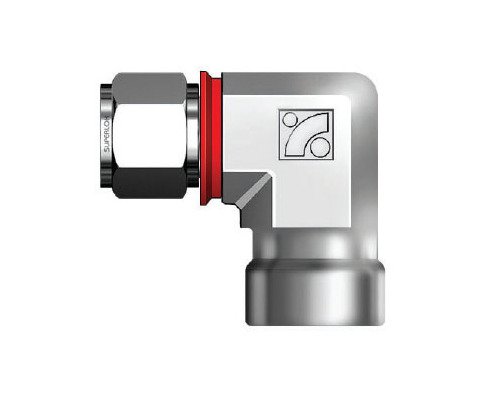

SSWEI Series 12mm Tube Socket Weld Elbow Connector
SSWEI Series 12mm Tube Socket Weld Elbow Connector
SKU:SSW-c8846c
Securely connect metric tubes with precision using the SSWEI 12mm Tube Socket Weld Elbow, designed for safety and productivity in high-pressure environments.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
SSWEI Series 12mm Tube Socket Weld Elbow Connector
$34.99
Quantity: 1
Claim Your Seller Account
SSWEI Series 12mm Tube Socket Weld Elbow Connector
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SSWEI Series 12mm Tube Socket Weld Elbow is expertly designed to connect metric tubes with precision and reliability. Crafted from high-quality alloys including Alloy 625, Alloy 825, and Stainless Steel, this elbow ensures a secure fit for tube diameters ranging from 6 to 25mm. With i-Fitting® components like the check ring for perfect compression, it enhances safety, productivity, and cost-efficiency in high-pressure environments. Its industry-changing design is patented by BMT, offering unmatched performance for valve connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

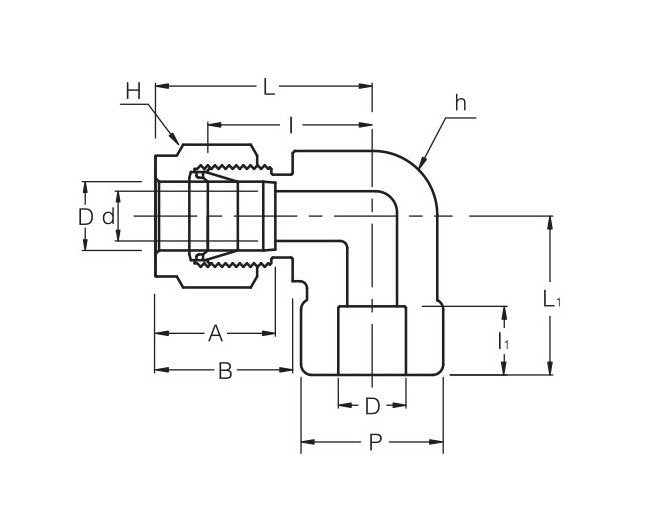

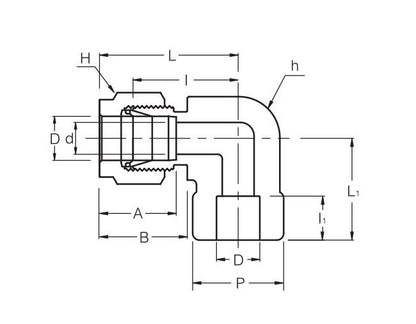

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension A
22.8 mm
Technical Specs Dimension B
21.8 mm
Technical Specs Dimension I
25.9 mm
Technical Specs Dimension I1
12.70 mm
Technical Specs Dimension L
36.1 mm
Technical Specs Dimension L1
25.9 mm
Technical Specs Dimension P
20.57 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
9.5 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
12 mm
Technical Specs Width Across Flat H
22.2 mm
