SSWEI Series 18mm Tube Socket Weld Elbow
SSWEI Series 18mm Tube Socket Weld Elbow
SKU:SSW-18dce1
High-quality 18mm Tube Socket Weld Elbow for secure metric tube connections, with i-Fitting® components for safety and efficiency.
Regular price
$35.99
Regular price
Sale price
$35.99
Unit price
per
Initiate Order
SSWEI Series 18mm Tube Socket Weld Elbow
$35.99
Quantity: 1
Claim Your Seller Account
SSWEI Series 18mm Tube Socket Weld Elbow
$35.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

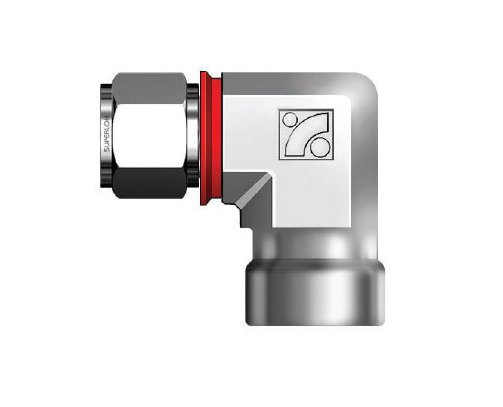

The SSWEI Series 18mm Tube Socket Weld Elbow is a precision-engineered fitting designed to connect metric tubes efficiently and securely. Crafted from high-quality materials including Alloy 625, 825, C-276, Aluminum, Brass, Carbon Steel, Monel Alloy 400, and Stainless Steel, this elbow ensures durability and reliability in various industrial environments. Featuring the innovative i-Fitting® components with a built-in gap gauge, this elbow enhances installer safety, prevents over-tightening, and boosts productivity. With a patented design by BMT, this fitting is industry-changing and ideal for valve connections, improving overall efficiency and reducing costs.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

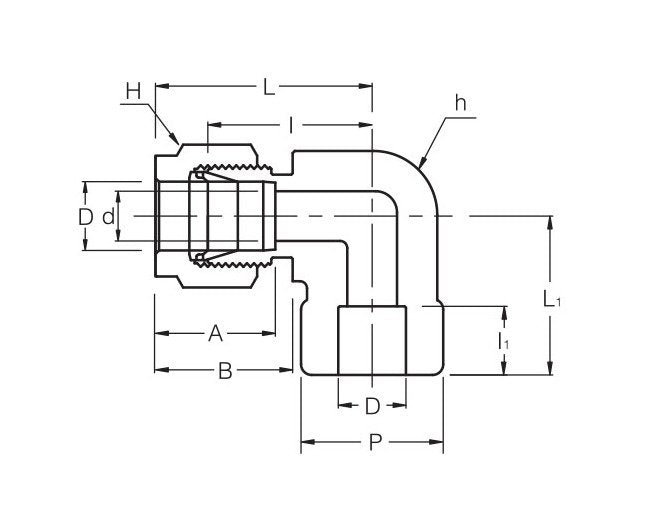

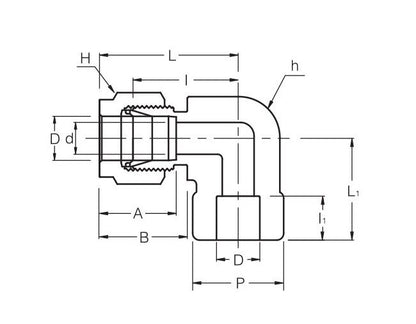

Technical Specs Dimension A
24.3 mm
Technical Specs Dimension B
21.8 mm
Technical Specs Dimension I
29.7 mm
Technical Specs Dimension I1
14.20 mm
Technical Specs Dimension L
39.9 mm
Technical Specs Dimension L1
29.7 mm
Technical Specs Dimension P
26.92 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
15.1 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Tube Outside Diameter D
18 mm
Technical Specs Width Across Flat H
28.6 mm
