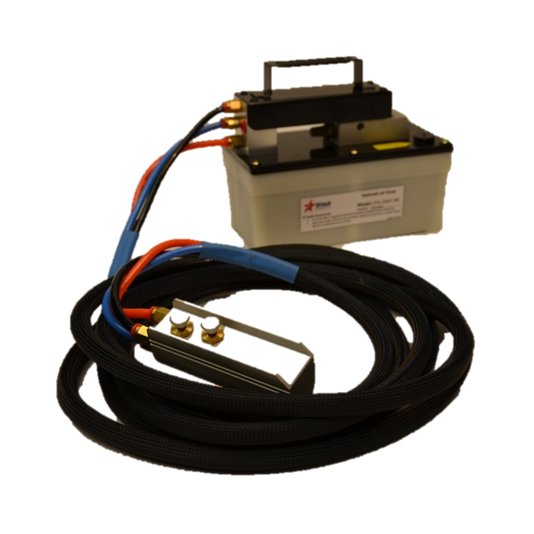

STA-101-1M Air-Powered Hydraulic Pump
STA-101-1M Air-Powered Hydraulic Pump
SKU:HYD-5fa097
Powerful air-powered hydraulic pump delivering up to 10,000 psi with 98 cu. in aluminum reservoir and hand pendant actuation. Reliable performance in diverse environments.
Regular price
$646.00
Regular price
Sale price
$646.00
Unit price
per
Initiate Order
STA-101-1M Air-Powered Hydraulic Pump
$646.00
Quantity: 1
Claim Your Seller Account
STA-101-1M Air-Powered Hydraulic Pump
$646.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The STA-101-1M Air-Powered Hydraulic Pump is a high-performance pump designed for delivering up to 10,000 psi of hydraulic power. With a sturdy aluminum reservoir boasting 98 cu. in capacity and a hand pendant actuation system, this pump ensures reliable operation over a wide temperature range. Benefit from an output flow capacity ranging from 77 in³/min under no load to 13 in³/min under load. Ideal for industrial applications requiring precision and power.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Pressure Range
40 - 140 psi
Specifications Inlet Port Size Nptf
3/8 in
Specifications List Price
646 USD
Specifications Oil Capacity
98 in²
Specifications Operating Pressure
10,000 psi
Specifications Output Flow Load
13 in³/min
Specifications Output Flow No Load
77 in³/min
Specifications Series
STA-10x-1M
Specifications Type
Hand Pendant
