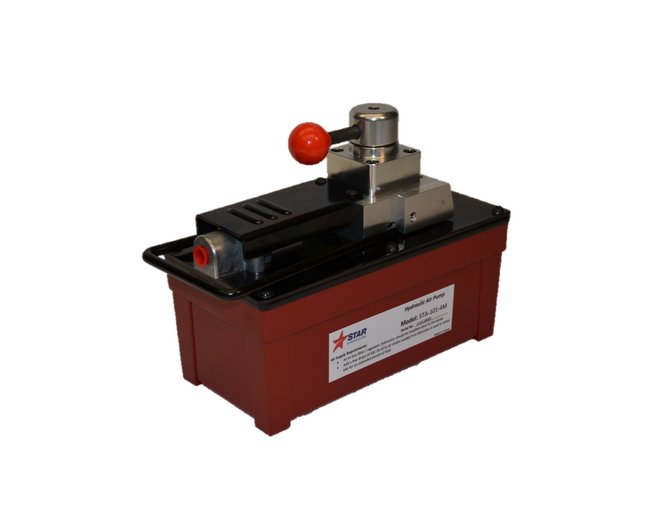

STA-101-4M Air-Powered Hydraulic Pump
STA-101-4M Air-Powered Hydraulic Pump
SKU:HYD-1235e0
Versatile air-powered hydraulic pump delivering 10,000 psi with 4-way valve control & 98 cu. in. aluminum reservoir.
Regular price
$680.00
Regular price
Sale price
$680.00
Unit price
per
Initiate Order
STA-101-4M Air-Powered Hydraulic Pump
$680.00
Quantity: 1
Claim Your Seller Account
STA-101-4M Air-Powered Hydraulic Pump
$680.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The STA-101-4M Air-Powered Hydraulic Pump is a robust solution designed to deliver up to 10,000 psi of hydraulic power, making it ideal for a wide range of applications. This model features a 4-way valve lever for precise control and uses a 98 cu. in. anodized aluminum reservoir for durability. With an output flow rate of 77 in³/min (no load) and 13 in³/min (under load), this pump ensures efficient operation. Operating within a temperature range, this pump is suitable for double-acting cylinders, meeting the demanding needs of industrial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Air Pressure Range
40 - 140 psi
Specifications Inlet Port Size Nptf
3/8 in
Specifications List Price
680 USD
Specifications Oil Capacity
98 in²
Specifications Operating Pressure
10,000 psi
Specifications Output Flow Load
13 in³/min
Specifications Output Flow No Load
77 in³/min
Specifications Series
STA-10X-4M
Specifications Type
4-way valve
