Stackable Cap Shaft Mounting Collar - Two-Piece Split Clamp
Stackable Cap Shaft Mounting Collar - Two-Piece Split Clamp
SKU:FLA-f52475
Precision two-piece split clamp for secure and adjustable shaft mounting, available in Steel and Stainless Steel.
Regular price
$35.79
Regular price
Sale price
$35.79
Unit price
per
Initiate Order
Stackable Cap Shaft Mounting Collar - Two-Piece Split Clamp
$35.79
Quantity: 1
Claim Your Seller Account
Stackable Cap Shaft Mounting Collar - Two-Piece Split Clamp
$35.79
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

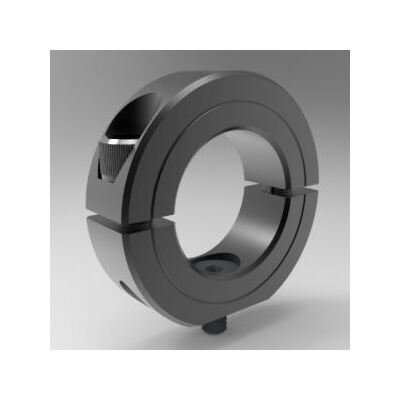

The Stackable Cap Shaft Mounting Collar features a two-piece split design with precision machining and high clamping power. Designed for standard round shafts, hard or soft, and thin wall tubes, it is easy to adjust, non-marring, and stackable. With a single flat for a finished outside surface, it includes mounting screws for versatile placement. Available in Steel or Stainless Steel, this collar is a secure solution for mounting shafts in various applications.
Product Specifications
Dimensional Attributes Bore Size
1 in
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
1.656 in
Dimensional Attributes Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Outside Diameter
1.750 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.2 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
35.79 USD
Specifications Material
Steel
Specifications Part Number
19L100CP
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026300
