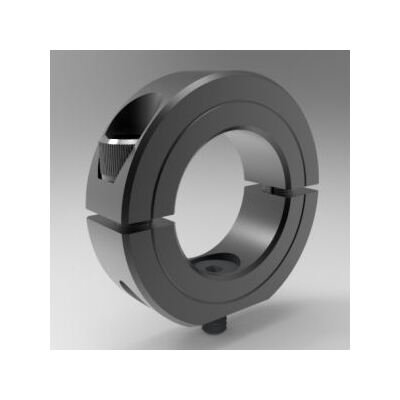

Stackable Cap Shaft Mounting Collar (Two-Piece Split Clamp)
Stackable Cap Shaft Mounting Collar (Two-Piece Split Clamp)
SKU:FLA-4bc4f5
Securely mount shafts with precision using the Stackable Cap Two-Piece Split Clamp Collar. Easy to adjust, high precision, durable design.
Regular price
$40.98
Regular price
Sale price
$40.98
Unit price
per
Initiate Order
Stackable Cap Shaft Mounting Collar (Two-Piece Split Clamp)
$40.98
Quantity: 1
Claim Your Seller Account
Stackable Cap Shaft Mounting Collar (Two-Piece Split Clamp)
$40.98
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stackable Cap Shaft Mounting Collar is a versatile solution for securely mounting shafts with ease and precision. This two-piece clamp-type collar features a low profile design, precision machining, and high clamping power. It can be disassembled and adjusted effortlessly, making it ideal for use on standard round shafts or thin wall tubes. The Stackable Cap version provides a finished, rounded outside surface when no further stacking is required. Supplied with a mounting screw, this collar is built to last and offers exceptional reliability for a wide range of applications.
Product Specifications
Dimensional Attributes Bore Size
1-1/8 in
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
1.781 in
Dimensional Attributes Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Outside Diameter
1.875 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
1215
Specifications Approximate Weight
0.21 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
40.98 USD
Specifications Material
Steel
Specifications Part Number
19L102CP
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026317
