Stackable Cap Shaft Mounting Collars
Stackable Cap Shaft Mounting Collars
SKU:FLA-94688a
Precision stainless steel shaft mounting collars for secure assembly and easy adjustment.
Regular price
$56.84
Regular price
Sale price
$56.84
Unit price
per
Initiate Order
Stackable Cap Shaft Mounting Collars
$56.84
Quantity: 1
Claim Your Seller Account
Stackable Cap Shaft Mounting Collars
$56.84
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

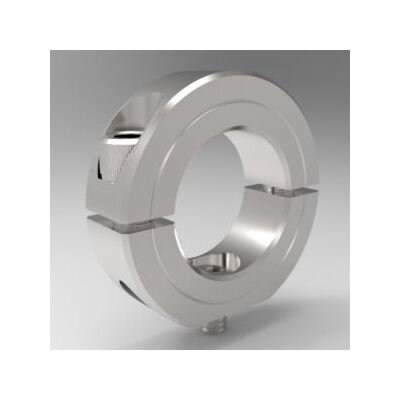

The Stackable Cap Shaft Mounting Collars are designed for precision mounting of shafts to components with a secure, adjustable, and stackable two-piece construction. Made of high-quality stainless steel, these collars feature a single flat to achieve a polished finish when stacking is not required. They can be easily disassembled and positioned anywhere on a shaft, offering high clamping power without marring the surface. With dimensions that support standard round shafts, the collars are versatile for various applications.
Product Specifications
Dimensional Attributes Bore Size
1-3/8 in
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
2.156 in
Dimensional Attributes Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.563 in
Specifications Alloy
303
Specifications Approximate Weight
0.35 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
56.84 USD
Specifications Material
Stainless Steel
Specifications Part Number
19S106CP
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026393
