Stackable Clamp-Type Shaft Mounting Collars
Stackable Clamp-Type Shaft Mounting Collars
SKU:FLA-43775a
Securely mount and stack shafts with precision using these easy-to-adjust two-piece collars, ideal for industrial applications.
Regular price
$38.68
Regular price
Sale price
$38.68
Unit price
per
Initiate Order
Stackable Clamp-Type Shaft Mounting Collars
$38.68
Quantity: 1
Claim Your Seller Account
Stackable Clamp-Type Shaft Mounting Collars
$38.68
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

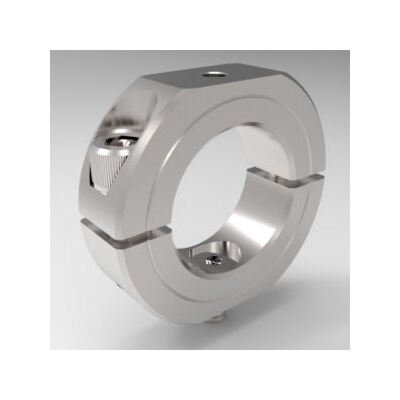

The Stackable Clamp-Type Shaft Mounting Collars are designed to securely mount shafts, allowing for easy adjustment and precise positioning. Featuring a two-piece split construction with drilled and tapped flats for secure attachment, these collars can be stacked to accommodate multiple shafts. The collars are stackable, easy to open, and offer high clamping power. Precision machined from stainless steel, these collars are non-marring and suitable for use on various shaft types and tube walls. Ideal for industrial and institutional applications requiring reliable shaft mounting solutions.
Product Specifications
Dimensional Attributes Bore Size
3/4 in
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
1.312 in
Dimensional Attributes Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Top Threaded Hole
10-24
Dimensional Attributes Width
0.500 in
Specifications Alloy
303
Specifications Approximate Weight
0.16 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
38.68 USD
Specifications Material
Stainless Steel
Specifications Part Number
19S012ST
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026232
