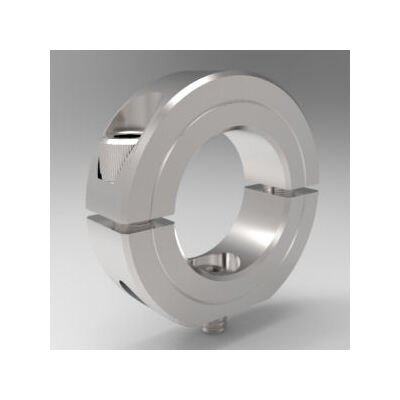

Stackable Shaft Mounting Collar (Cap) - Stainless Steel

Name: Stackable Shaft Mounting Collar (Cap) - Stainless Steel
Brand: Stafford Manufacturing Corp.
SKU: FLA-38e0d8
Price: 44.2 USD
Availability: OutOfStock

SKU:FLA-38e0d8

Secure, stackable stainless steel shaft collar with high clamping power and easy adjustments for versatile mounting solutions.

$44.20

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stackable Shaft Mounting Collar (Cap) in stainless steel is a versatile solution for securing round shafts, thin wall tubes, or split hubs. Its two-piece construction with precision machining ensures high clamping power while being non-marring. The stackable design allows for easy adjustments and placement anywhere on a shaft. This collar features a single flat to provide a finished, rounded surface when stacking is not required. Supplied with a mounting screw, it is designed for ease of use and reliability.

Product Specifications

Dimensional Attributes Bore Size

3/4 in

Dimensional Attributes Bottom Threaded Hole

1/4-20

Dimensional Attributes Distance Across Flats

1.406 in

Dimensional Attributes Mounting Screw

#10 Flat Head Cap Screw

Dimensional Attributes Outside Diameter

1.500 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.16 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications List Price

44.2 USD

Specifications Material

Stainless Steel

Specifications Part Number

19S012CP

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Solution

Specifications Type

Low Profile

Specifications Upc Code

662786026355
