Stackable Shaft Mounting Collars - Two-Piece Split Clamp (Cap)
Stackable Shaft Mounting Collars - Two-Piece Split Clamp (Cap)
SKU:FLA-371aea
Precision-designed Stackable Shaft Mounting Collars for secure and adjustable shaft mounting. Easy stacking and disassembly, available in Steel and Stainless Steel.
Regular price
$40.06
Regular price
Sale price
$40.06
Unit price
per
Initiate Order
Stackable Shaft Mounting Collars - Two-Piece Split Clamp (Cap)
$40.06
Quantity: 1
Claim Your Seller Account
Stackable Shaft Mounting Collars - Two-Piece Split Clamp (Cap)
$40.06
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

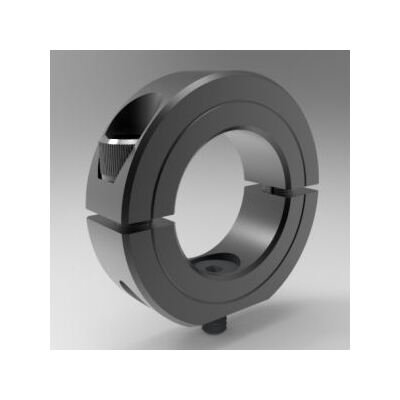

The Stackable Shaft Mounting Collars feature a two-piece split clamp design with precision machining, making it ideal for mounting shafts securely on various components. These collars are stackable and effortlessly adjustable, offering high clamping power. Designed for standard round shafts, these collars can be disassembled and placed anywhere on a shaft. The Stackable (Cap) version presents a rounded outside surface when no further stacking is required, enhancing aesthetics and functionality. Available in Steel and Stainless Steel options, these collars are supplied with mounting screws for convenience.
Product Specifications
Dimensional Attributes Bore Size
1-1/2 in
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
2.281 in
Dimensional Attributes Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Outside Diameter
2.375 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.563 in
Specifications Alloy
1215
Specifications Approximate Weight
0.38 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications List Price
40.06 USD
Specifications Material
Steel
Specifications Part Number
19L108CP
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026348
