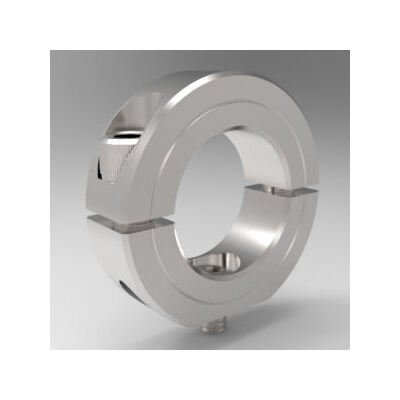

Stackable Split Clamp Shaft Mounting Collar (Cap) - Stainless Steel
Stackable Split Clamp Shaft Mounting Collar (Cap) - Stainless Steel
SKU:FLA-3da5bf
Precision-engineered Stainless Steel mounting collar for secure, versatile shaft attachment.
Regular price
$61.39
Regular price
Sale price
$61.39
Unit price
per
Initiate Order
Stackable Split Clamp Shaft Mounting Collar (Cap) - Stainless Steel
$61.39
Quantity: 1
Claim Your Seller Account
Stackable Split Clamp Shaft Mounting Collar (Cap) - Stainless Steel
$61.39
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stackable Split Clamp Shaft Mounting Collar (Cap) in Stainless Steel offers a versatile solution for securely mounting shafts to components. Featuring a two-piece construction with drilled and tapped flats, this collar accommodates multiple shafts, can be positioned anywhere on a shaft, and is supplied with mounting screws. Designed for standard round shafts, hard or soft, as well as thin wall tubes, the collar is easy to adjust, stackable, and provides high clamping power. Precision machined and non-marring, with a Low Profile design, this collar ensures a secure fit and easy adjustability.
Product Specifications
Dimensional Attributes Bore Size
1-1/2 in
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
2.281 in
Dimensional Attributes Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Outside Diameter
2.375 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.563 in
Specifications Alloy
303
Specifications Approximate Weight
0.38 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
61.39 USD
Specifications Material
Stainless Steel
Specifications Part Number
19S108CP
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026409
