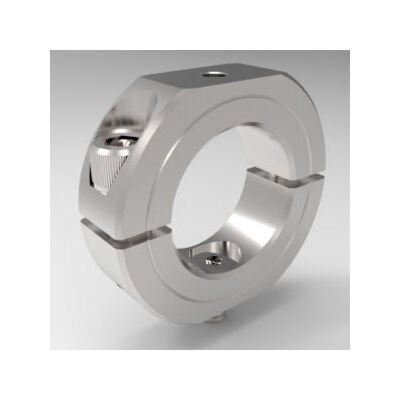

Stackable Two-Piece Split Clamp Shaft Mounting Collars
Stackable Two-Piece Split Clamp Shaft Mounting Collars
SKU:FLA-33646d
Secure, stackable, and easy-to-adjust two-piece split clamp shaft mounting collars for precise shaft mounting applications.
Regular price
$60.25
Regular price
Sale price
$60.25
Unit price
per
Initiate Order
Stackable Two-Piece Split Clamp Shaft Mounting Collars
$60.25
Quantity: 1
Claim Your Seller Account
Stackable Two-Piece Split Clamp Shaft Mounting Collars
$60.25
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stackable Two-Piece Split Clamp Shaft Mounting Collars provide a sturdy solution for mounting shafts with precision and ease. Featuring a two-piece construction with drilled and tapped flats for secure attachment, these collars can be stacked and adjusted effortlessly. Designed for standard round shafts and thin wall tubes, these collars offer high clamping power, non-marring properties, and disassembly for flexible placement. Available in Steel or Stainless Steel, these collars meet stringent quality standards for reliable performance in various applications.
Product Specifications
Dimensional Attributes Bore Size
1-1/4 in
Dimensional Attributes Bottom Threaded Hole
1/4-20
Dimensional Attributes Distance Across Flats
1.874 in
Dimensional Attributes Mounting Screw
#10 Flat Head Cap Screw
Dimensional Attributes Outside Diameter
2.063 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Top Threaded Hole
10-24
Dimensional Attributes Width
0.500 in
Specifications Alloy
303
Specifications Approximate Weight
0.25 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
60.25 USD
Specifications Material
Stainless Steel
Specifications Part Number
19S104ST
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Solution
Specifications Type
Low Profile
Specifications Upc Code
662786026263
