Stafford High Strength Stainless Steel Hinge Shaft Collar 2S103H

Name: Stafford High Strength Stainless Steel Hinge Shaft Collar 2S103H
Brand: Stafford Manufacturing Corp.
SKU: ROU-7a7c0d
Price: 49.99 USD
Availability: OutOfStock

SKU:ROU-7a7c0d

Innovative Stafford High Strength Stainless Steel Hinge Shaft Collar with triple-link hinge for fast and secure operation in demanding environments.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

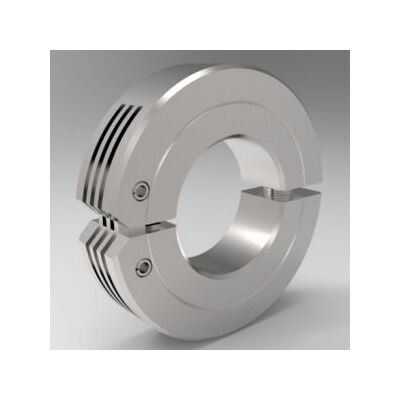

The Stafford High Strength Stainless Steel Hinge Shaft Collar 2S103H is a versatile and innovative solution for applications requiring fast and efficient operation. Equipped with a triple-link hinge and captive screw, this collar combines the flexibility of a two-piece design with the simplicity of a one-piece unit. Perfect for hostile environments or where time and space constraints are critical, this collar ensures easy assembly, repositioning, and disassembly without the hassle of loose screws. The smooth bore protects shafts from damage, providing the same axial holding power as traditional collars. Stocked in steel and stainless steel, this Hinge Shaft Collar is a reliable choice for various shaft types, including round shafts, hard or soft, as well as thin-walled tubes or split hubs.

Product Specifications

Dimensional Attributes Bore Size

1-3/16 in

Dimensional Attributes Outside Diameter

2.125 in

Dimensional Attributes Recessed Screw

Yes

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.500 in

Specifications Alloy

303

Specifications Approximate Weight

0.3 lb

Specifications Country Of Origin

USA

Specifications Finish

None

Specifications Material

Stainless Steel

Specifications Part Number

2S103H

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

High Strength

Specifications Upc Code

662786009372

Stafford High Strength Stainless Steel Hinge Shaft Collar 2S103H
