Stafford Hinge Shaft Collar
Stafford Hinge Shaft Collar
SKU:ROU-eb696b
The Stafford Hinge Shaft Collar offers fast, secure assembly with high axial holding power. Perfect for hostile environments.
Regular price
$70.38
Regular price
Sale price
$70.38
Unit price
per
Initiate Order
Stafford Hinge Shaft Collar
$70.38
Quantity: 1
Claim Your Seller Account
Stafford Hinge Shaft Collar
$70.38
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

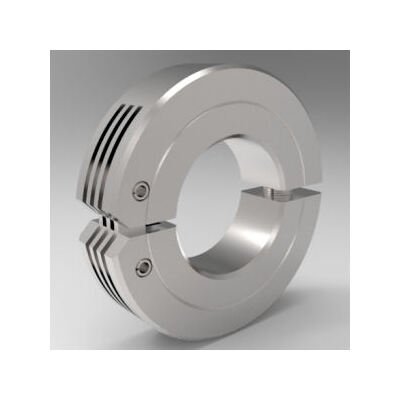

The Stafford Hinge Shaft Collar is a versatile solution designed for fast operation in hostile environments. Featuring a triple-link hinge and captive screw, it combines the flexibility of a two-piece collar with the simplicity of a one-piece design. This collar ensures easy assembly, repositioning, and disassembly, eliminating the hassle of loose screws and wasted time. With a smooth bore that protects shafts from damage, it provides the same axial holding power as conventional collars. Stocked in steel and stainless steel, the Hinge Shaft Collar is ideal for use on standard round shafts, hard or soft, as well as on thin wall tubes or over split hubs.
Product Specifications
Dimensional Attributes Bore Size
1-1/4 in
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
303
Specifications Approximate Weight
0.34 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications List Price
70.38 USD
Specifications Material
Stainless Steel
Specifications Part Number
2S104H
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786009389
