Stafford Hinge Shaft Collar 2BR010H

Stafford Hinge Shaft Collar 2BR010H

SKU:ROU-4270c7

Enhance efficiency with the Stafford Hinge Shaft Collar 2BR010H. Ideal for quick assembly on standard shafts. High-strength Brass Alloy C360 construction for durability.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Stafford Hinge Shaft Collar 2BR010H

Stafford Hinge Shaft Collar 2BR010H

$24.99

Quantity: 1

Claim Your Seller Account

Stafford Hinge Shaft Collar 2BR010H

Stafford Hinge Shaft Collar 2BR010H

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

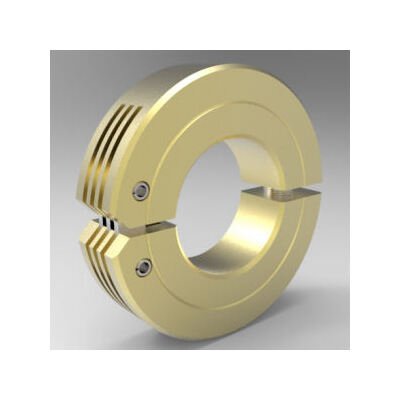

The Stafford Hinge Shaft Collar 2BR010H is a versatile solution featuring a triple-link hinge and captive screw in one unit, ideal for quick and easy assembly on standard round shafts or thin wall tubes. Made of high-strength Brass Alloy C360, it offers the same axial holding power as conventional collars while protecting shafts with its smooth bore design. Whether in hostile environments or space-constrained situations, this collar provides efficient operation without the risk of loose screws, ensuring durability and reliability. Stocked in steel and stainless steel, the Hinge Shaft Collar combines the flexibility of a two-piece collar with the simplicity of a one-piece, resulting in a time-saving and hassle-free assembly experience.

Product Specifications

Dimensional Attributes Bore Size
5/8 in
Dimensional Attributes Outside Diameter
1.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
10-32 x 1/2
Dimensional Attributes Width
0.406 in
Specifications Alloy
C360
Specifications Approximate Weight
0.13 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Brass
Specifications Part Number
2BR010H
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786037078
