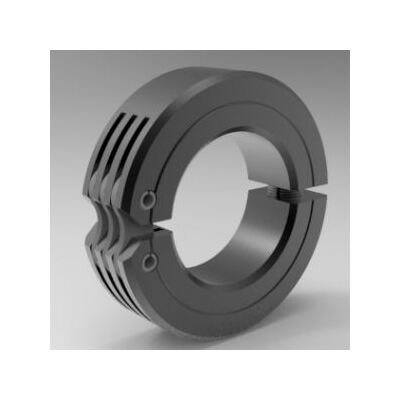

Stafford Hinge Shaft Collar 32L107H
Stafford Hinge Shaft Collar 32L107H
SKU:ROU-512792
Stafford Hinge Shaft Collar 32L107H - Fast assembly, secure locking, and durable steel construction for reliable performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stafford Hinge Shaft Collar 32L107H
$24.99
Quantity: 1
Claim Your Seller Account
Stafford Hinge Shaft Collar 32L107H
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stafford Hinge Shaft Collar 32L107H is a versatile solution for fast and efficient shaft locking. Featuring a triple-link hinge and captive screw design, this collar offers the flexibility of a two-piece collar with the simplicity of a one-piece unit. Ideal for rapid operations in challenging environments, it ensures easy assembly, repositioning, and disassembly without the hassle of loose screws. Constructed from durable steel with a smooth bore to protect shafts, this collar provides reliable axial holding power. Stocked in both steel and stainless steel variants, Stafford's exclusive Hinge Shaft Collars combine performance and convenience for various applications.
Product Specifications
Dimensional Attributes Bore Size
1-7/16 in
Dimensional Attributes Outside Diameter
2.250 in
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.563 in
Specifications Alloy
A283grC
Specifications Approximate Weight
0.34 lb
Specifications Country Of Origin
China
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
32L107H
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Standard
Specifications Type
Economy
Specifications Upc Code
662786034572
