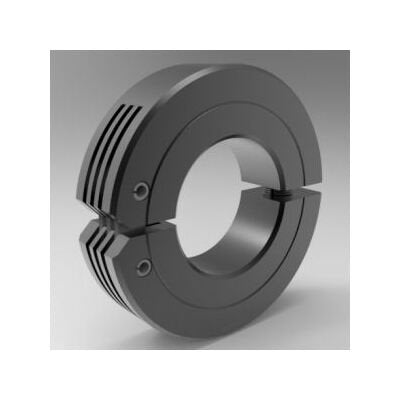

Stafford Hinge Type Metric Shaft Collars
Stafford Hinge Type Metric Shaft Collars
SKU:ROU-9a4427
Efficiently assembled Stafford Hinge Type Metric Shaft Collars for secure and quick operation in any environment.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stafford Hinge Type Metric Shaft Collars
$24.99
Quantity: 1
Claim Your Seller Account
Stafford Hinge Type Metric Shaft Collars
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stafford Hinge Type Metric Shaft Collars are engineered to precision, fully metric compliant with a clamp screw for easy and secure assembly on shafts. Featuring a triple-link hinge and captive screw in one unit, they offer quick operation in hostile environments. These collars are stocked in steel and stainless steel, providing excellent axial holding power while protecting shafts with a smooth bore design. Ideal for standard round shafts, thin wall tubes, or split hubs, these collars combine the flexibility of a two-piece design with the simplicity of a one-piece, ensuring efficient and reliable performance.
Product Specifications
Dimensional Attributes Bore Size
10 mm
Dimensional Attributes Outside Diameter
24 mm
Dimensional Attributes Recessed Screw
No
Dimensional Attributes Screw Material
Alloy Steel
Dimensional Attributes Screw Size
M4 x .7 x 12MM
Dimensional Attributes Width
9 mm
Specifications Alloy
1215
Specifications Approximate Weight
0.05 lb
Specifications Country Of Origin
USA
Specifications Finish
Black Oxide
Specifications Material
Steel
Specifications Part Number
2LM010H
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
Low Profile
Specifications Upc Code
662786019852
