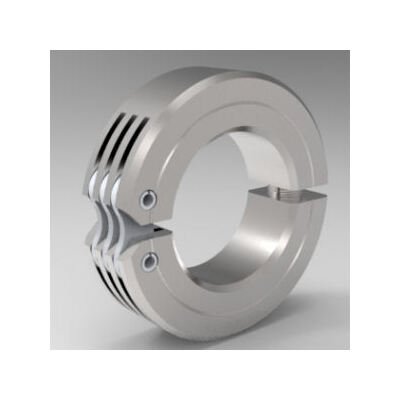

Stafford Hinge Type Shaft Collar 32S102H, Stainless Steel

Name: Stafford Hinge Type Shaft Collar 32S102H, Stainless Steel
Brand: Stafford Manufacturing Corp.
SKU: ROU-635c9a
Price: 24.99 USD
Availability: OutOfStock

SKU:ROU-635c9a

Stafford's versatile Hinge Shaft Collar for quick, secure shaft attachment. Smooth, damage-free bore, easy assembly, and stainless steel construction.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stafford Hinge Type Shaft Collar 32S102H is a robust solution featuring a triple-link hinge and captive screw design for fast operation in demanding environments. Perfect for standard round shafts, tubes, and split hubs. This stainless steel collar offers easy assembly, repositioning, and removal, eliminating lost screws and wasted time. With a smooth bore that protects shafts, it provides exceptional axial holding power. Stocked in matte-finished 304 alloy, it meets RoHS2 and REACH compliance for superior reliability.

Product Specifications

Dimensional Attributes Bore Size

1-1/8 in

Dimensional Attributes Outside Diameter

1.875 in

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

18-8 Stainless Steel

Dimensional Attributes Screw Size

1/4-28 x 5/8

Dimensional Attributes Width

0.500 in

Specifications Alloy

304

Specifications Approximate Weight

0.22 lb

Specifications Country Of Origin

China

Specifications Finish

Matte

Specifications Material

Stainless Steel

Specifications Part Number

32S102H

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Standard

Specifications Type

Economy

Specifications Upc Code

662786034688
