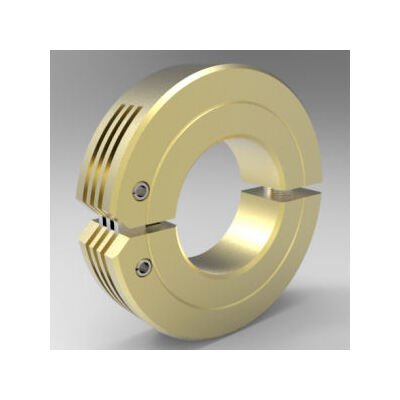

Stafford Hinge Type Shaft Collars
Stafford Hinge Type Shaft Collars
SKU:ROU-bc8f8d
Combining flexibility and simplicity in one unit, Stafford Hinge Shaft Collars offer easy assembly, exceptional axial holding power, and protection against shaft damage.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stafford Hinge Type Shaft Collars
$24.99
Quantity: 1
Claim Your Seller Account
Stafford Hinge Type Shaft Collars
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stafford Hinge Type Shaft Collars offer unparalleled convenience with a triple-link hinge design and a captive screw, combining the flexibility of a two-piece collar with the simplicity of a one-piece unit. Perfect for fast operations in hostile environments or tight spaces, these collars are functionally similar to two-piece collars but with the added ease of assembly, repositioning, and disassembly. Made of high-strength steel or stainless steel, these collars provide exceptional axial holding power and a smooth bore that protects shafts from damage. Stafford's exclusive design eliminates fumbling, lost screws, and wasted time, making it an ideal choice for various applications.
Product Specifications
Dimensional Attributes Bore Size
1-1/2 in
Dimensional Attributes Outside Diameter
2.500 in
Dimensional Attributes Recessed Screw
Yes
Dimensional Attributes Screw Material
18-8 Stainless Steel
Dimensional Attributes Screw Size
1/4-28 x 5/8
Dimensional Attributes Width
0.500 in
Specifications Alloy
C360
Specifications Approximate Weight
0.39 lb
Specifications Country Of Origin
USA
Specifications Finish
None
Specifications Material
Brass
Specifications Part Number
2BR108H
Specifications Reach Compliant
Yes
Specifications Rohs2 Compliant
Yes
Specifications Series
Signature
Specifications Type
High Strength
Specifications Upc Code
662786037115
