Stafford Metric Hinge Shaft Collars

Name: Stafford Metric Hinge Shaft Collars
Brand: Stafford Manufacturing Corp.
SKU: ROU-7db045
Price: 29.99 USD
Availability: OutOfStock

SKU:ROU-7db045

Experience efficiency and strength with Stafford's Metric Hinge Shaft Collars, ideal for quick and secure operations in any environment.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

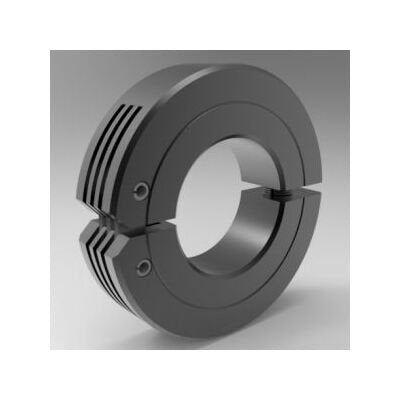

The Stafford Metric Hinge Shaft Collars are precision-engineered for seamless assembly on shafts, featuring a triple-link hinge design with a captive screw. These collars combine the flexibility of two-piece collars with the simplicity of a one-piece unit, enabling swift operation in demanding environments. With a smooth bore that safeguards shafts from damage, these collars guarantee secure axial holding power, making them ideal for various applications. Available in steel and stainless steel, these collars are fully metric, including the clamp screws, ensuring hassle-free installation and repositioning.

Product Specifications

Dimensional Attributes Bore Size

35 mm

Dimensional Attributes Outside Diameter

57 mm

Dimensional Attributes Recessed Screw

Dimensional Attributes Screw Material

Alloy Steel

Dimensional Attributes Screw Size

M6 x 1.0 x 18MM

Dimensional Attributes Width

15 mm

Specifications Alloy

1215

Specifications Approximate Weight

0.37 lb

Specifications Country Of Origin

USA

Specifications Finish

Black Oxide

Specifications Material

Steel

Specifications Part Number

2LM035H

Specifications Reach Compliant

Yes

Specifications Rohs2 Compliant

Yes

Specifications Series

Signature

Specifications Type

Low Profile

Specifications Upc Code

662786019944

Stafford Metric Hinge Shaft Collars
