Stainless Steel 1/2 in Multi-Port Needle Valve
Stainless Steel 1/2 in Multi-Port Needle Valve
SKU:MUL-6c7e2d
Premium Stainless Steel Needle Valve for precise flow control in high-pressure systems. ASME & NACE compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel 1/2 in Multi-Port Needle Valve
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel 1/2 in Multi-Port Needle Valve
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

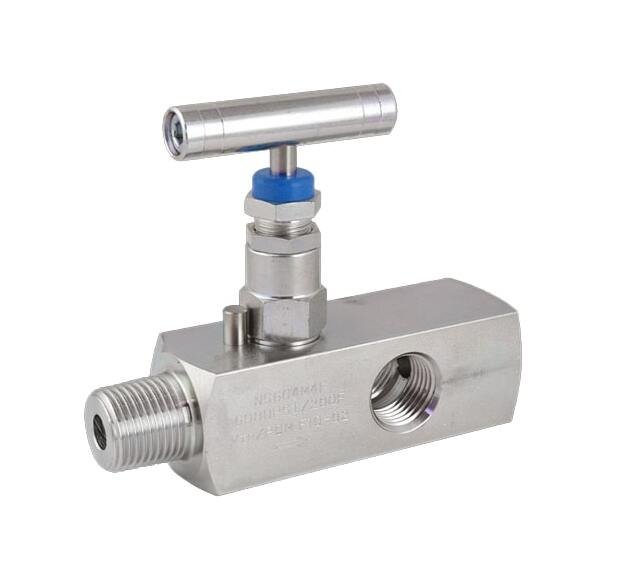

The Stainless Steel 1/2 Inch Multi-Port Needle Valve is a durable and reliable solution for precise flow control in industrial settings. Constructed with high-quality stainless steel, this valve withstands pressures up to 10000 psi. Featuring male x female NPT threads that conform to ASME standards, this valve ensures secure connections and optimal performance. Its hard seat material enhances longevity, while its compact dimensions make it versatile for various applications. Compliant with ASME B1.20.1 and NACE standards, this valve is a dependable choice for demanding environments.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1
Technical Specs Dimension A
4.45 in
Technical Specs Dimension B
2.5 in
Technical Specs Dimension C
1.42 in
Technical Specs Dimension D
2.4 in
Technical Specs Dimension E
3.54 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Stainless
Technical Specs Seat Material
Hard Seat
Technical Specs Thread Size
1/2 in
Technical Specs Thread Type
Male x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
10000 psi
