Stainless Steel 1000 Series Medium Pressure Solenoid Valve

Name: Stainless Steel 1000 Series Medium Pressure Solenoid Valve
Brand: Circle Valve Technologies Inc.
SKU: ATK-3eb33a
Price: 199.99 USD
Availability: OutOfStock

SKU:ATK-3eb33a

Rugged Stainless Steel Solenoid Valve, 5000 psig, Wide Fluid Compatibility, Extreme Temperature Range, Class H Coil

$199.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

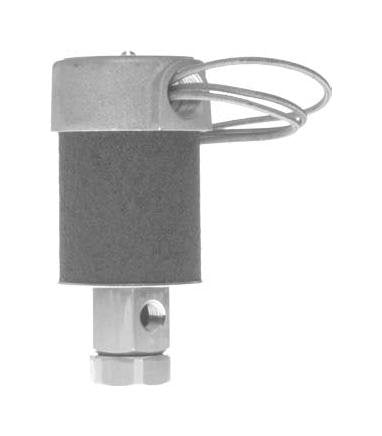

The Stainless Steel 1000 Series Solenoid Valve is a rugged and versatile solution designed for medium pressure applications up to 5000 psig. With a compact barstock body construction and stainless steel components, this valve ensures durability and high performance. It can handle a wide range of fluids, from air and gases to corrosive liquids, with optional seat materials for customization. The valve operates in extreme temperatures from -423°F to +500°F, making it suitable for diverse industrial environments. Equipped with a Class H coil, this valve meets stringent quality standards for reliability and efficiency.

Product Specifications

Specifications Body Material

Stainless Steel

Specifications Coil Insulation Rating

Class H (180Â° C)

Specifications Coil Type

Double Wound (Relay Required)

Specifications Connection Size

1/4 in

Specifications Connection Type

Female NPT

Specifications Cv

0.093

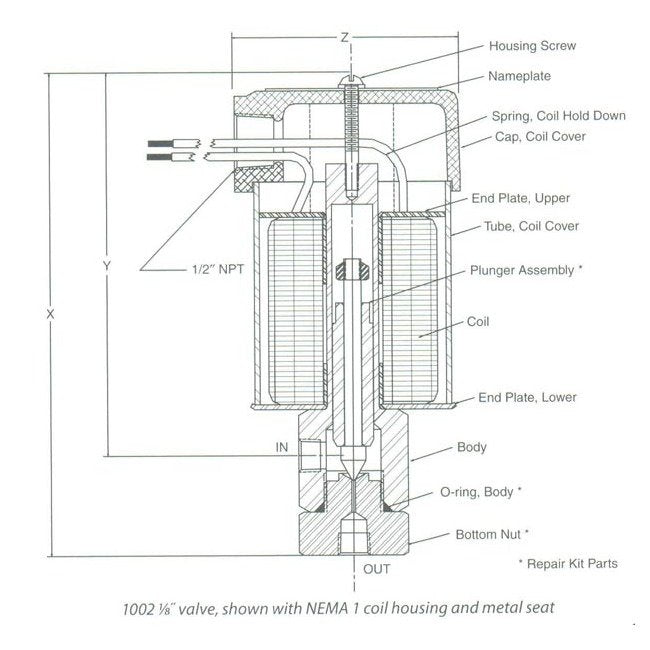

Specifications Dim X

5 3/4 in

Specifications Dim Y

4 5/8 in

Specifications Dim Z

2 3/4 in

Specifications Fluid Media Type

Liquid up to 40 SUS

Specifications Operating Pressure

5000 psig

Specifications Orifice Size

1/16 in

Specifications Position Of Valve De Energized

Normally Closed

Specifications Seat Seal Material

316 SS (Teflon Seal)

Specifications Series

1100

Specifications Temperature Range

-423 to 500 ÂºF | -253 to 260 ÂºC

Specifications Type

Solenoid Valve

Specifications Voltage

115 VAC

Stainless Steel 1000 Series Medium Pressure Solenoid Valve
