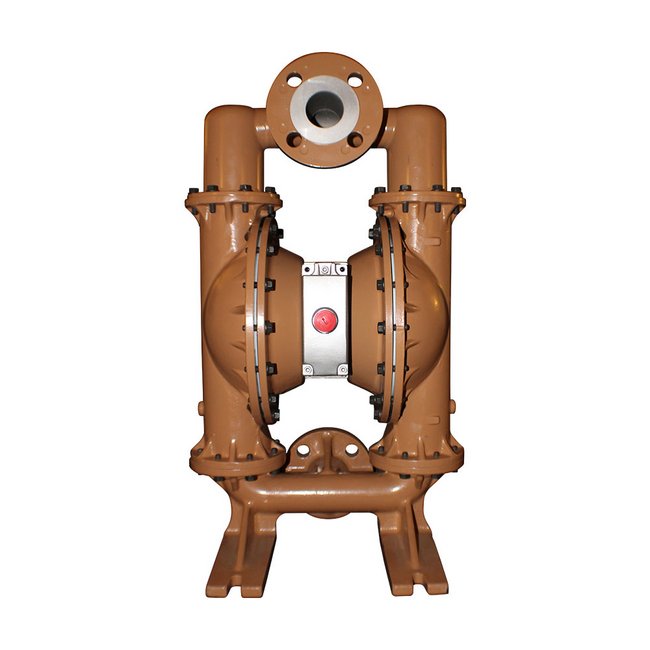

• Stainless Steel 2" NPT Bolted PWR-FLO™ AODD Pump with PTFE Diaphragms - Image 1
  • Stainless Steel 2" NPT Bolted PWR-FLO™ AODD Pump with PTFE Diaphragms - Image 2
  • Stainless Steel 2" NPT Bolted PWR-FLO™ AODD Pump with PTFE Diaphragms - Image 3
  • Stainless Steel 2" NPT Bolted PWR-FLO™ AODD Pump with PTFE Diaphragms - Image 4
1 4
Springer Pumps, LLC →

Stainless Steel 2" NPT Bolted PWR-FLO™ AODD Pump with PTFE Diaphragms

Stainless Steel 2" NPT Bolted PWR-FLO™ AODD Pump with PTFE Diaphragms

MAN-b9642b

Reliable Stainless Steel AODD pump with PTFE diaphragms for efficient liquid transfer and solids handling.

$1,299.99
$1,299.99
Sale

Initiate Order

Stainless Steel 2" NPT Bolted PWR-FLO™ AODD Pump with PTFE Diaphragms

Stainless Steel 2" NPT Bolted PWR-FLO™ AODD Pump with PTFE Diaphragms

$1,299.99

Quantity: 1

Claim Your Seller Account

Stainless Steel 2" NPT Bolted PWR-FLO™ AODD Pump with PTFE Diaphragms

Stainless Steel 2" NPT Bolted PWR-FLO™ AODD Pump with PTFE Diaphragms

$1,299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Upgrade your pumping system with the Stainless Steel 2" NPT Bolted PWR-FLO™ AODD Pump. This air-driven double diaphragm pump is a drop-in replacement for Wilden® pumps, featuring a chemically resistant polypropylene air valve and center section. With PTFE diaphragms and an efficient asymmetrical spool design, it ensures reliable on/off liquid transfer for filling and batching applications. Designed for handling large solids and slurries, this pump offers a max flow rate of 164 gpm, complying with industry standards for durability and performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

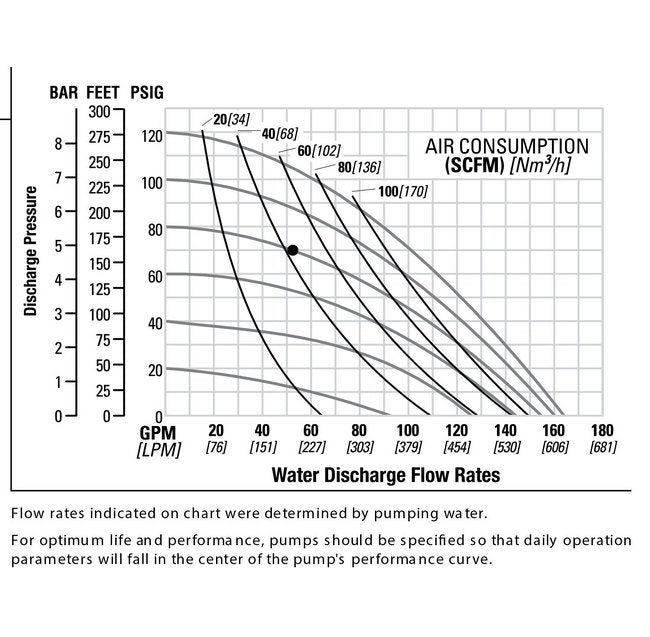

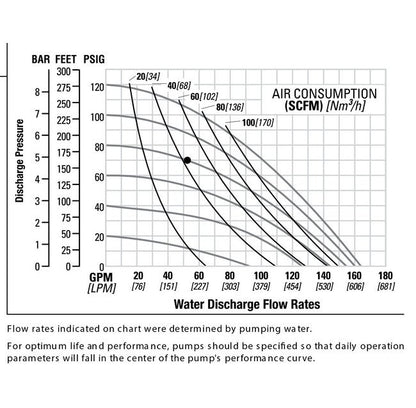

Performance Curves
Dimensions 0

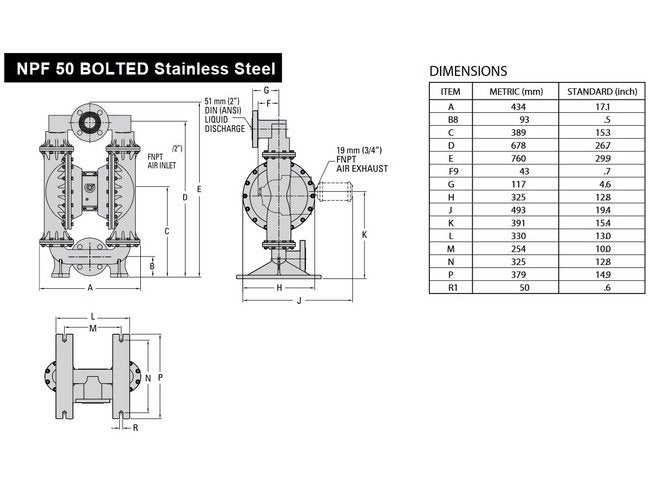

Dimensions
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO™ asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Diaphragm Material
PTFE (with Neoprene back-up)
Specifications Displacement Per Cycle
0.74 gal | 2.80 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
2 NPT in | 51 NPT mm
Specifications Fluid Outlet Size
2 NPT in | 51 NPT mm
Specifications Height
30 Inch | 30 in | 759.46 mm
Specifications Length
17 Inch | 17 in | 0.4394 m | 439.42 mm
Specifications Max Flow Rate
164 gpm | 620.81 lpm
Specifications Moc
Stainless Steel
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-19841-12
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
13 Inch | 13 in | 0.3404 m | 340.36 mm
