Stainless Steel 2" NPT PWR-FLO™ AODD Pump with PTFE Diaphragm

Stainless Steel 2" NPT PWR-FLO™ AODD Pump with PTFE Diaphragm

MAN-cf7e59

Reliable Stainless Steel AODD Pump with PTFE Diaphragm for efficient liquid transfer in industrial applications.

$899.99
$899.99
Sale

Initiate Order

Stainless Steel 2" NPT PWR-FLO™ AODD Pump with PTFE Diaphragm

Stainless Steel 2" NPT PWR-FLO™ AODD Pump with PTFE Diaphragm

$899.99

Quantity: 1

Claim Your Seller Account

Stainless Steel 2" NPT PWR-FLO™ AODD Pump with PTFE Diaphragm

Stainless Steel 2" NPT PWR-FLO™ AODD Pump with PTFE Diaphragm

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Stainless Steel 2" NPT PWR-FLO™ AODD Pump with PTFE Diaphragm from the NOMAD® PWR-FLO™ Pumps series is a robust and reliable air-driven double diaphragm pump designed for handling large solids and slurries. Featuring an efficient PWR-FLO™ asymmetrical spool design, this pump ensures optimal performance in filling and batching applications. The stainless steel construction and PTFE - UFI diaphragm material guarantee chemical resistance and durability. With a maximum flow rate of 131 gpm, this pump provides efficient liquid transfer while meeting the standards of excellence expected in industrial settings.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

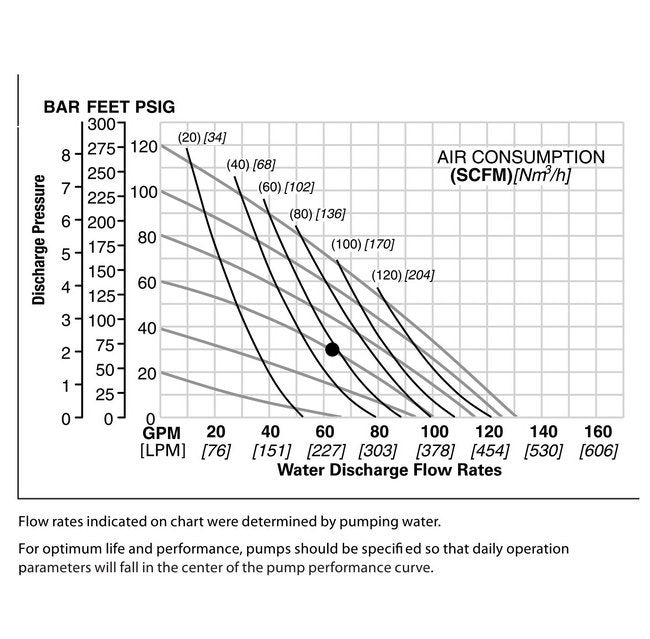

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO™ asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
PTFE - UFI
Specifications Displacement Per Cycle
0.44 gal | 1.67 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
2 NPT in | 51 NPT mm
Specifications Fluid Outlet Size
2 NPT in | 51 NPT mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
131 gpm | 495.89 lpm
Specifications Moc
Stainless Steel
Specifications Model
NPF50/SSPP/TFF/TF/STF/N/C
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-38662
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
