Stainless Steel 6.0mm DIN 2353 Bulkhead Elbow - Body Only
Stainless Steel 6.0mm DIN 2353 Bulkhead Elbow - Body Only
SKU:FIT-a7f467
High-quality Stainless Steel Bulkhead Elbow - Body Only for secure, leak-free connections in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel 6.0mm DIN 2353 Bulkhead Elbow - Body Only
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel 6.0mm DIN 2353 Bulkhead Elbow - Body Only
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

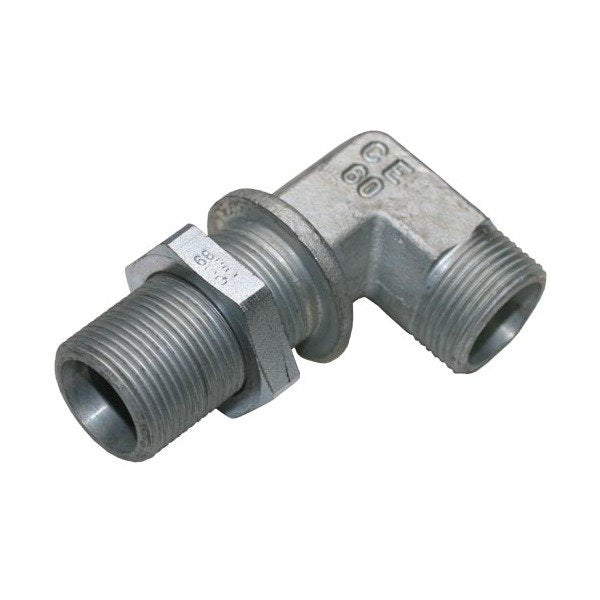

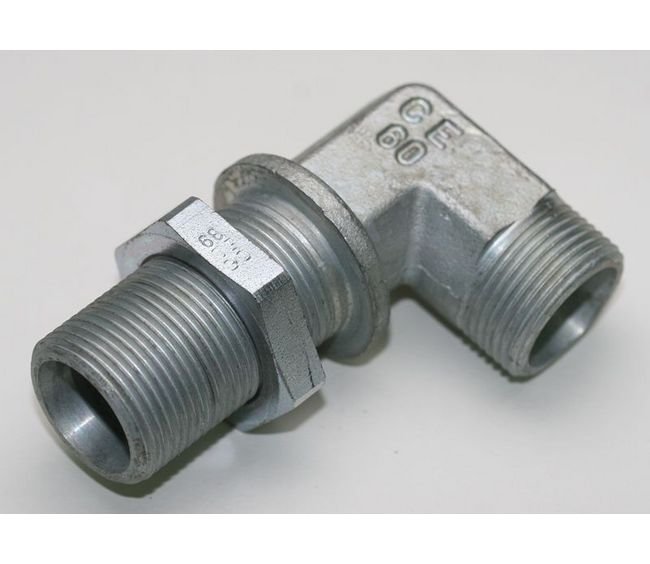

The Stainless Steel Bulkhead Elbow - Body Only is designed for light-duty applications, constructed with durable stainless steel in compliance with DIN 2353 standards. With a tube diameter of 6.0mm and a nominal operating pressure of 315 bar, this fitting ensures reliable performance. The precision engineering guarantees a secure fit and leak-free connection, making it ideal for industrial settings.

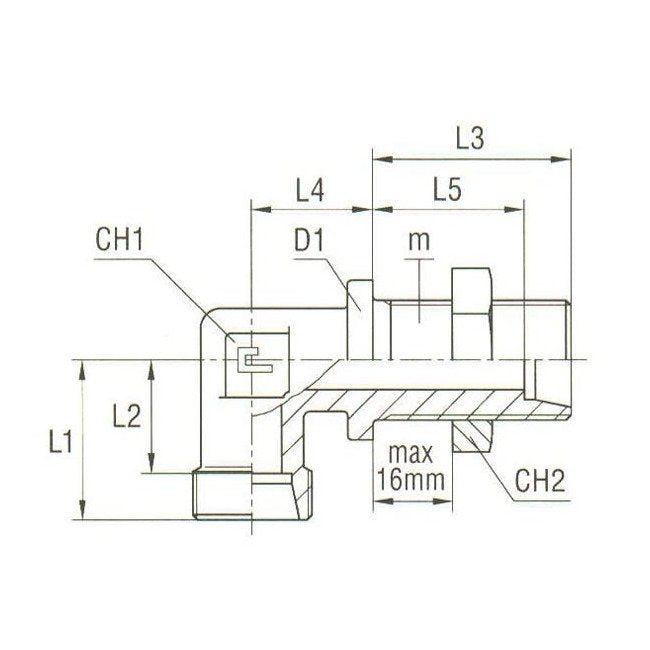

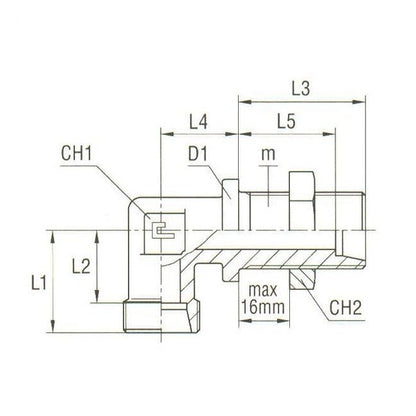

Product Specifications
Specifications Ch1
12 mm
Specifications Ch2
17.0 mm
Specifications D1
17 mm
Specifications L1
19.0 mm
Specifications L2
12.0 mm
Specifications L3
34.0 mm
Specifications L4
14 mm
Specifications L5
27 mm
Specifications Material
Stainless Steel
Specifications M Thread Size
12x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
6.0 mm
