Stainless Steel Adjustable Back Pressure Regulator - BP-3 Series
Stainless Steel Adjustable Back Pressure Regulator - BP-3 Series
SKU:GOP-92cc1c
Premium stainless steel back pressure regulator with precise throttling action for improved system pressure regulation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Stainless Steel Adjustable Back Pressure Regulator - BP-3 Series
$299.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Adjustable Back Pressure Regulator - BP-3 Series
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BP-3 Series Stainless Steel Adjustable Back Pressure Regulator by GO Regulator, Inc. is specifically designed for precise control in both liquid and gas instrumentation systems. This regulator offers a unique throttling action to efficiently manage inlet pressure, improving system pressure regulation in low flow or closed systems. Constructed with high-density Polytetrafluoroethylene (PTFE) and 316L stainless steel, this regulator ensures bubble-tight shutoff and can be used for gas or liquid service. With a control range of 0 to 25 psig and various optional orifice sizes available, this regulator is ideal for analytical instrumentation, gas and liquid sampling, petrochemical industry, air compressors, research labs, and pilot plants.
Product Specifications
Features And Benefits Features And Benefits
Only 316L stainless steel and Polytetrafluoroethylene (PTFE) in flow streamBubble tight shutoffGas or liquid service
Note Note
The choices above represent an abbreviated list of the more commonly ordered options.
Options Options
Wetted materials of construction brass, Monel®, Hastelloy® C-276, titaniumExtra portsPanel mount (requires a 1 3/8"mounting hole)High purity connectionsPressure gauges
Specifications Actuator Material
High Density Polytetrafluoroethylene (PTFE)
Specifications Body Material
316L Stainless Steel, Stainless Steel Backing
Specifications Cap Assembly
Panel Mount
Specifications Cavity Finish
< 25 Ra
Specifications Control Range
0 to 25 psig
Specifications Diaphragm Backing Material
Metal Backing
Specifications Diaphragm Facing Material
Polytetrafluoroethylene (PTFE)
Specifications Diaphragm Type
Standard Diaphragm
Specifications Flow Coefficient Cv
0.2
Specifications Gauge Port Size
1/4 in
Specifications Gauge Port Types
Female National Pipe Tapered (FNPT)

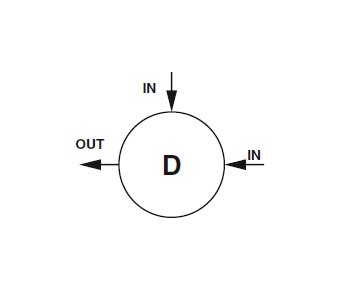

Specifications Port Configuration
D - See Diagram for Port Configuration
Specifications Process Port Size
1/4 in
Specifications Process Port Types
Female National Pipe Tapered (FNPT)
Specifications Weight
1.9 lb | 0.86 kg
Technical Data Operating Temperature
-40 to +500 ºF | -40 to +260 ºC
Technical Data Optional Various Orifice Sizes
0.005 | 0.01 | 0.025 | 0.03 | 0.04 | 0.05 | 0.06 | 0.095 | 0.12 | 0.24 | 0.3
Applications Applications
Analytical instrumentationGas and liquid samplingPetrochemical industryAir compressorsResearch labsPilot plants
