Stainless Steel Aircraft Studs MS21259 Military Specification
Stainless Steel Aircraft Studs MS21259 Military Specification
SKU:MIL-34a58b
High-quality Stainless Steel Aircraft Studs meeting military specifications for secure wire rope fastening.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Stainless Steel Aircraft Studs MS21259 Military Specification
$29.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Aircraft Studs MS21259 Military Specification
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

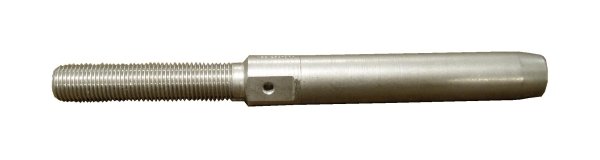

The Stainless Steel Aircraft Studs MS21259 are meticulously crafted to meet the exacting standards of military specifications. Made of durable stainless steel, these studs feature RH or LH thread options, with precise dimensions including a 3.000-inch Y dimension, 9.125-inch overall length, and 0.984-inch A diameter. These studs ensure secure fastening for wire rope with a diameter of 9/16 inches, making them ideal for aviation and military applications.

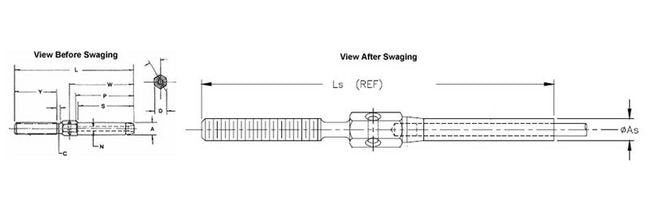

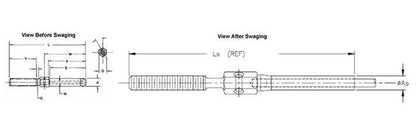

Product Specifications
Specifications As Diam
0.875
Specifications A Diam
0.984
Specifications C Diam In
0.717
Specifications D In
1
Specifications Lbs Per Piece
1
Specifications Ls Ref
9.72
Specifications L 015 000 In
9.125
Specifications N Diam
0.594
Specifications P In
5.011
Specifications S 062 000 In
4.938
Specifications Thread Size B
(3/4)-16
Specifications To Fit Wire Rope Dia In
9/16
Specifications W 016 In
5.468
Specifications Y 063 000 In
3.000
CAGE
0T9L4
NAICS
332510
PSC
4030
