Stainless Steel Anchor Base with Stud - 3/8in Suncor

Stainless Steel Anchor Base with Stud - 3/8in Suncor

SKU:STA-d77006

Premium grade 316 stainless steel Anchor Base with Stud - 3/8in Suncor for secure and versatile lifting

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

Stainless Steel Anchor Base with Stud - 3/8in Suncor

Stainless Steel Anchor Base with Stud - 3/8in Suncor

$29.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Anchor Base with Stud - 3/8in Suncor

Stainless Steel Anchor Base with Stud - 3/8in Suncor

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

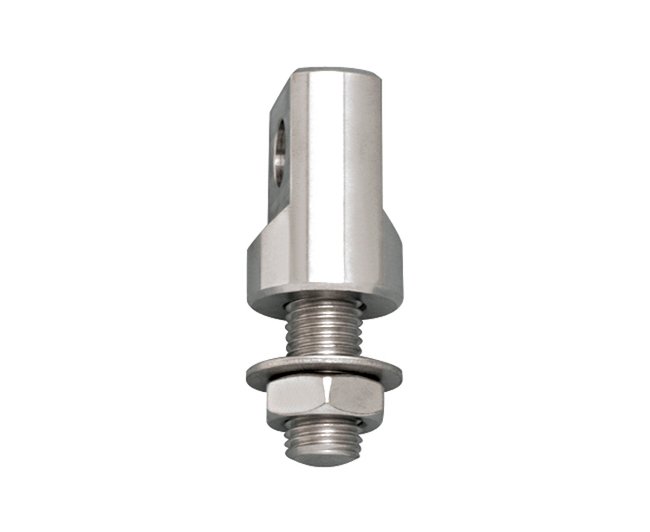

The Stainless Steel Anchor Base with Stud by Suncor is a premium hoist assembly component designed for maximum durability and corrosion resistance. Made from grade 316 stainless steel, this anchor base set includes the hoist anchor base, threaded rod, washer, and nut, catering to various lifting applications. The base securely attaches lifting points to objects without natural attachments, featuring a set screw for stud security. With a 1500 lb Working Load Limit (WLL) and precise machined fabrication, this anchor base provides a full range of motion and 180-degree pivoting capability. Ideal for industrial applications requiring reliability and strength.

Product Specifications

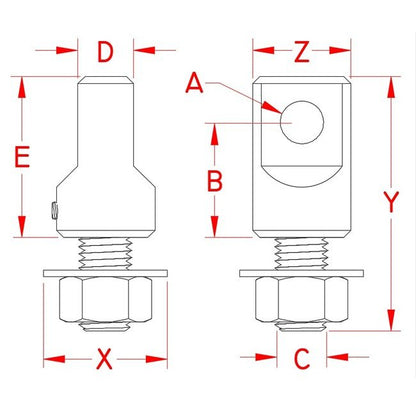

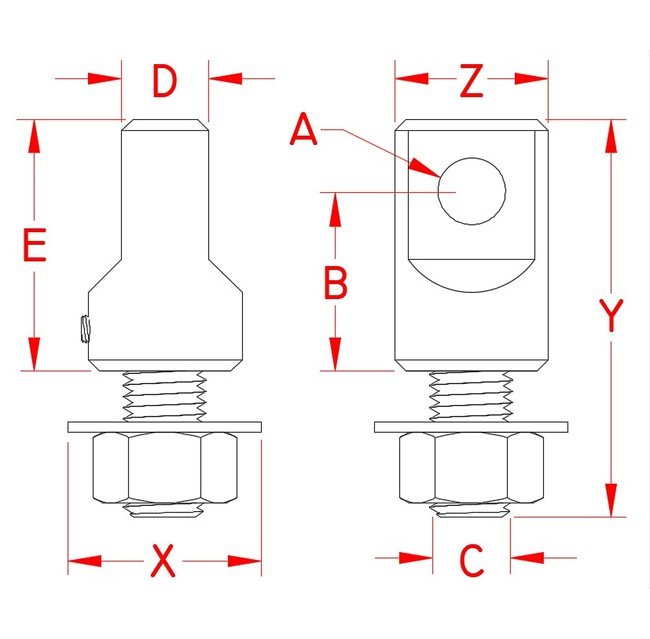

Specifications Dimension A
0.44 in
Specifications Dimension B
1.50 in
Specifications Dimension C
1/2"-13
Specifications Dimension D
0.60 in
Specifications Dimension E
2.00 in
Specifications Dimension X
1.25 in
Specifications Dimension Y
2.87 in
Specifications Dimension Z
1.25 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
3/8 in
Specifications Suncor Exclusive
Yes
Specifications Weight
0.54 lb
Specifications Working Load Limit Wll
1500 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
