Stainless Steel Anchor Base with Stud - Suncor 1-inch

Stainless Steel Anchor Base with Stud - Suncor 1-inch

SKU:STA-17319d

Suncor Stainless Steel Anchor Base with Stud - Durable, versatile, and secure hoisting solution for industrial applications.

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

Stainless Steel Anchor Base with Stud - Suncor 1-inch

Stainless Steel Anchor Base with Stud - Suncor 1-inch

$79.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Anchor Base with Stud - Suncor 1-inch

Stainless Steel Anchor Base with Stud - Suncor 1-inch

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

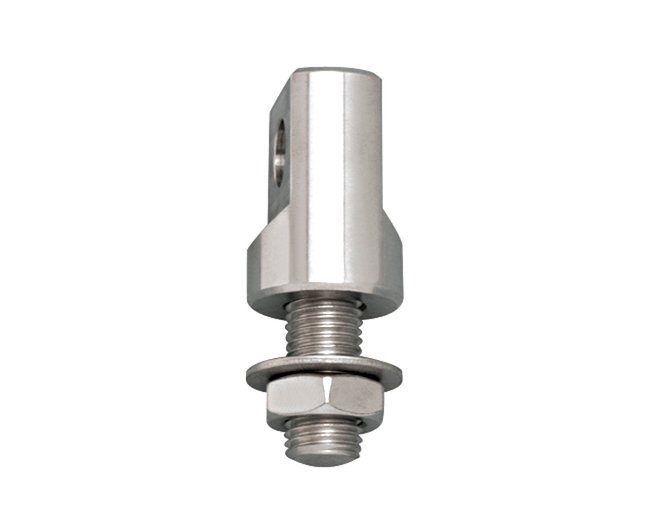

The Suncor Stainless Steel Anchor Base with Stud is a reliable hoisting solution designed for industrial lifting applications. Crafted from high-grade 316 stainless steel, this anchor base ensures exceptional corrosion resistance and long-lasting durability. It comes complete with a threaded rod, washer, and nut, accommodating various shackle types for versatile usage. Featuring precision machining and a secure set screw mechanism, this base provides a stable attachment point for lifting objects without natural fixtures. With a working load limit of 10,000 lb, adjustable pivoting capability, and a full range of motion, the Suncor Anchor Base is a dependable choice for secure and flexible lifting operations in diverse settings.

Product Specifications

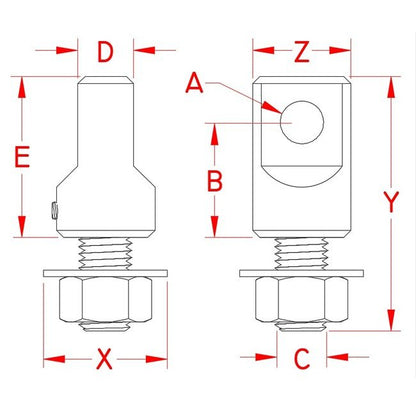

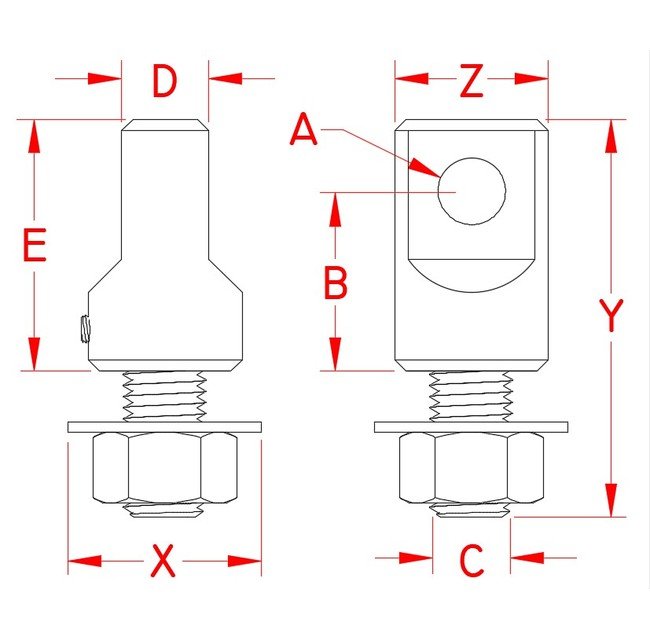

Specifications Dimension A
1.13 in
Specifications Dimension B
2.67 in
Specifications Dimension C
1-1/4"-7
Specifications Dimension D
1.60 in
Specifications Dimension E
4.00 in
Specifications Dimension X
2.75 in
Specifications Dimension Y
6.18 in
Specifications Dimension Z
2.75 in
Specifications Fabrication Type
Precision Machined
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Size
1 in
Specifications Suncor Exclusive
Yes
Specifications Weight
5.93 lb
Specifications Working Load Limit Wll
10,000 lb
CAGE
1CXX6
NAICS
332722
PSC
5307
