Stainless Steel Asymmetrical Spring Clip

Stainless Steel Asymmetrical Spring Clip

SKU:STA-4d722e

Premium 316 stainless steel Asymmetrical Spring Clip, ideal for marine and industrial applications. Proof tested with a break load 4 times the Working Load Limit (WLL).

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Stainless Steel Asymmetrical Spring Clip

Stainless Steel Asymmetrical Spring Clip

$24.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Asymmetrical Spring Clip

Stainless Steel Asymmetrical Spring Clip

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

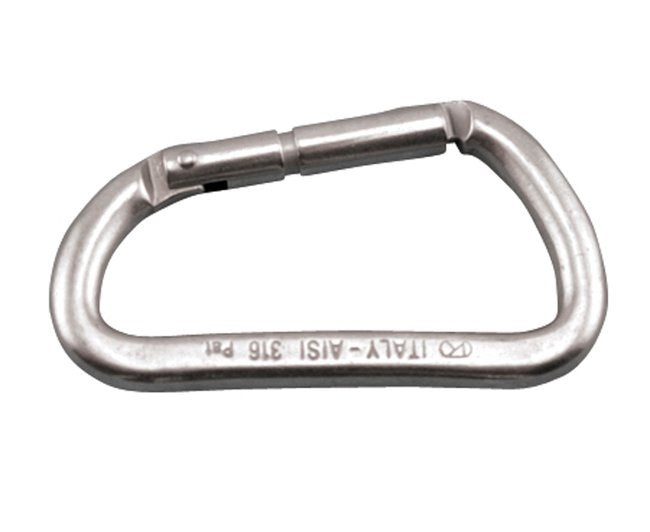

Meet your marine and industrial needs with our Stainless Steel Asymmetrical Spring Clip. Crafted from premium 316 stainless steel, this clip offers maximum corrosion resistance and durability. Each clip is proof tested with a break load approximately 4 times the Working Load Limit (WLL), ensuring reliability in critical applications. With dimensions carefully engineered for optimal performance, this drop-forged clip by Suncor is load-rated and designed for heavy-duty use. Imported and weighing only 0.31 lb, this clip combines strength, precision, and quality for your peace of mind.

Product Specifications

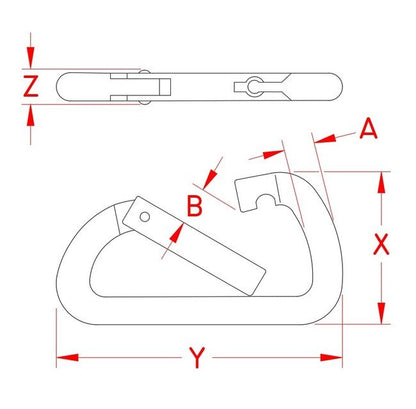

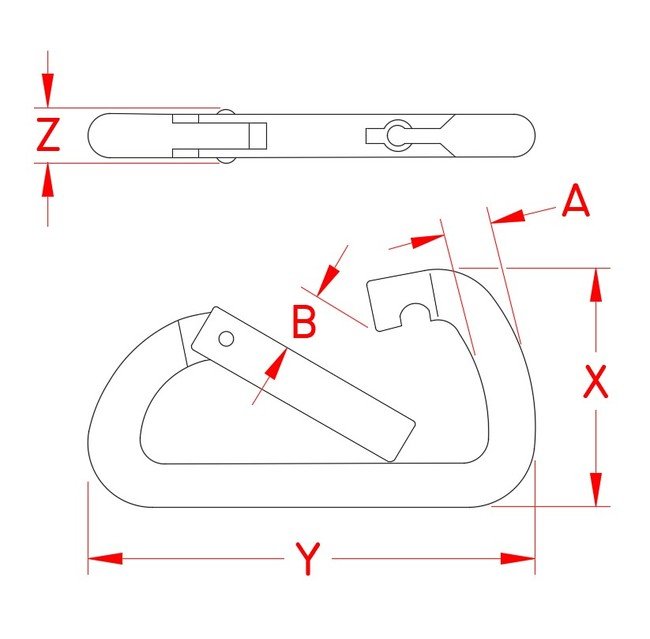

Specifications Dimension A
0.40 in
Specifications Dimension B
0.75 in
Specifications Dimension X
2.25 in
Specifications Dimension Y
3.92 in
Specifications Dimension Z
0.43 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.31 lb
Specifications Working Load Limit Wll
1,350 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
