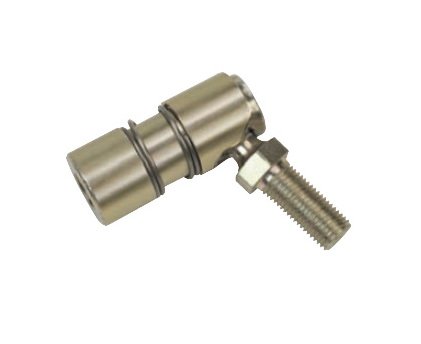

Stainless Steel Ball Joint Assembly

Stainless Steel Ball Joint Assembly

SKU:PUS-d4a9e5

Enhance linkage applications with our durable Stainless Steel Ball Joint Assembly for easy maintenance and reliable performance.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Stainless Steel Ball Joint Assembly

Stainless Steel Ball Joint Assembly

$24.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Ball Joint Assembly

Stainless Steel Ball Joint Assembly

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Stainless Steel Ball Joint Assembly offers a versatile solution for light to medium-duty linkage applications in various industries such as cable assemblies, light industrial, agricultural, and racing. With quick disconnect features for easy maintenance, this ball joint operates within a wide temperature range, ensuring durability and performance. Engineered with steel components for strength and longevity, it can be customized to meet specific requirements. Compliant with SAE J490 specifications, choose the reliability of the S/SS Series for efficient and cost-effective operations.

Product Specifications

Applications 0
Light to medium-duty linkage applications, including:Cable assembliesLight industrial applicationsAgricultural, lawn and garden equipmentRacing (throttle links)
Features 0
Three different configurations, all with steel ball stud, sleeve and body to match your load and cost requirementsQuick pull back, "no tools required" disconnect assembly provides easier access, faster maintenanceCan be used in a wide range of temperatures: -60 ºF - 250 ºF (-51 ºC - 121 ºC) Right and left-handed versions availableCustom sizes and assemblies can be built to your specificationsS/SS Series meets SAE J490 specification (S: type S/style 1, SS: type S/style 2)
Material 0
Ball Stud - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSleeve - Low Carbon Steel, Zinc Plated, Yellow Dichromate TreatedBody: S and SS - Low Carbon SteelBody: SC - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSpring: S and SS - Stainless SteelSpring Clip: SC - Hardened Spring Steel

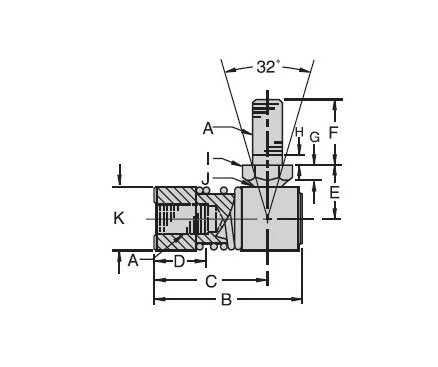

Specifications A Unf
3/8-24 "
Specifications Ball Diameter Ref
0.491 "
Specifications B 0020
1.750 "
Specifications C 0020
1.375 "
Specifications D Min
0.812 "
Specifications E 0020
0.687 "
Specifications F 0020
0.875 "
Specifications G Ref
0.156 "
Specifications H Ref
0.109 "
Specifications I Ref
0.500 "
Specifications J Ref
0.273 "
Specifications K Ref
0.750 "
Specifications Temperature Range
-60 to 250 ºF | -51 to 121 ºC
Specifications Type
SS
CAGE
0T9L4
NAICS
332510
PSC
4030
