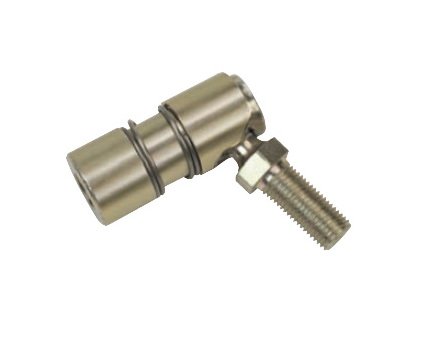

Upgrade your cable linkage systems with our Stainless Steel Ball Joint Assembly. Designed for light to medium-duty applications, this SS ball joint features a quick disconnect mechanism for easy maintenance without the need for tools. With a temperature range of -60 to 250 ºF, custom sizing options, and meeting SAE J490 specifications, this ball joint offers durability and versatility to meet various industry requirements.
Product Specifications
Applications 0
Light to medium-duty linkage applications, including:Cable assembliesLight industrial applicationsAgricultural, lawn and garden equipmentRacing (throttle links)
Features 0
Three different configurations, all with steel ball stud, sleeve and body to match your load and cost requirementsQuick pull back, "no tools required" disconnect assembly provides easier access, faster maintenanceCan be used in a wide range of temperatures: -60 ºF - 250 ºF (-51 ºC - 121 ºC) Right and left-handed versions availableCustom sizes and assemblies can be built to your specificationsS/SS Series meets SAE J490 specification (S: type S/style 1, SS: type S/style 2)
Material 0
Ball Stud - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSleeve - Low Carbon Steel, Zinc Plated, Yellow Dichromate TreatedBody: S and SS - Low Carbon SteelBody: SC - Low Carbon Steel, Heat Treated, Zinc Plated, Yellow Dichromate TreatedSpring: S and SS - Stainless SteelSpring Clip: SC - Hardened Spring Steel

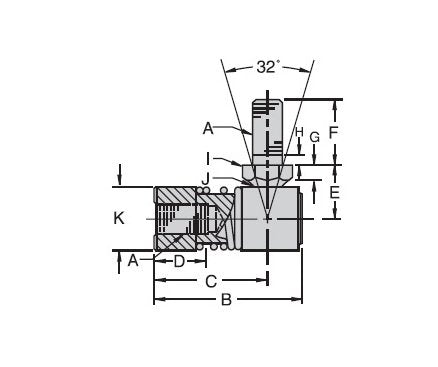

Specifications A Unf
5/16-24 "
Specifications Ball Diameter Ref
0.403 "
Specifications B 0020
1.453 "
Specifications C 0020
1.125 "
Specifications D Min
0.594 "
Specifications E 0020
0.531 "
Specifications F 0020
0.687 "
Specifications G Ref
0.125 "
Specifications H Ref
0.094 "
Specifications I Ref
0.437 "
Specifications J Ref
0.224 "
Specifications K Ref
0.625 "
Specifications Temperature Range
-60 to 250 ºF | -51 to 121 ºC
Specifications Type
SS
CAGE
0T9L4
NAICS
332510
PSC
4030
