Stainless Steel Bearing Wire Rope Sheave
Stainless Steel Bearing Wire Rope Sheave
SKU:STA-323720
Premium Stainless Steel Sheave with 1200 lb WLL, ideal for marine & industrial use. Patented Suncor exclusive.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Stainless Steel Bearing Wire Rope Sheave
$49.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bearing Wire Rope Sheave
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

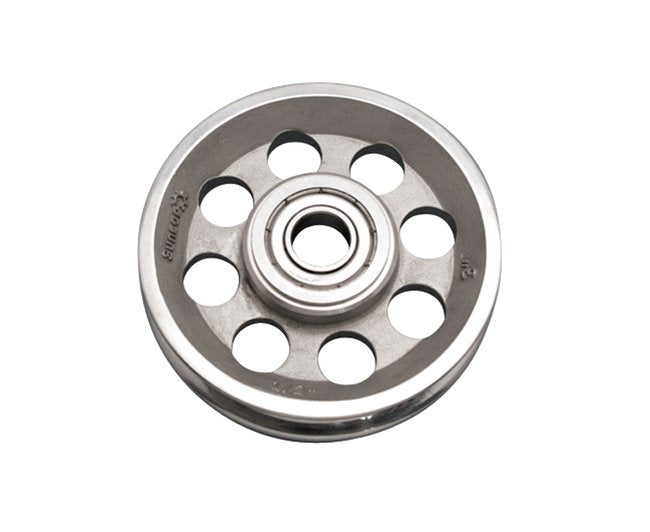

The Stainless Steel Bearing Wire Rope Sheave is a premium-grade rigging component designed with 2 shielded stainless steel bearings to accommodate wire rope sizes from 3/32" to 3/8". Crafted from grade 316 stainless steel, this sheave ensures maximum corrosion resistance and durability. Ideal for marine and industrial applications, it features a working load limit of 1200 lb, precision cast fabrication, and patented Suncor exclusivity.
Product Specifications

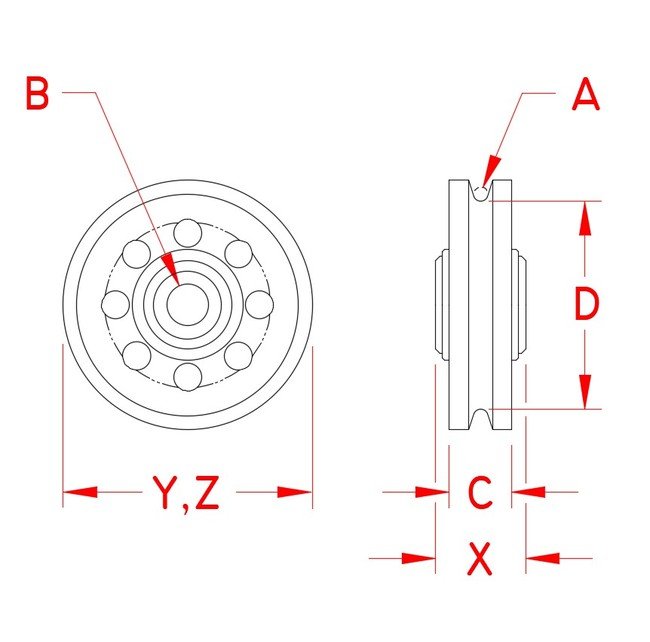

Specifications Dimension A
1/4 in
Specifications Dimension B
1/2 in
Specifications Dimension C
0.94 in
Specifications Dimension D
3.50 in
Specifications Dimension X
1.07 in
Specifications Dimension Y
4.25 in
Specifications Dimension Z
4.25 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Suncor Exclusive
Yes
Specifications Suncor Patent
Yes
Specifications Weight
1.5 lb
Specifications Working Load Limit Wll
1200 lb
CAGE
1CXX6
NAICS
333923
PSC
3020
