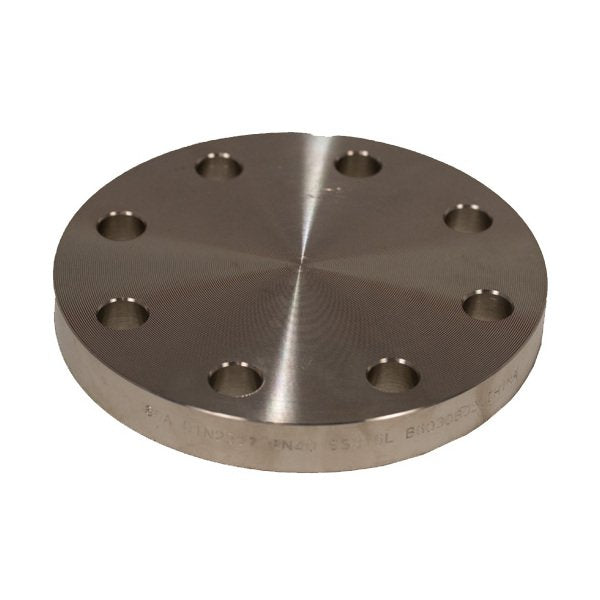

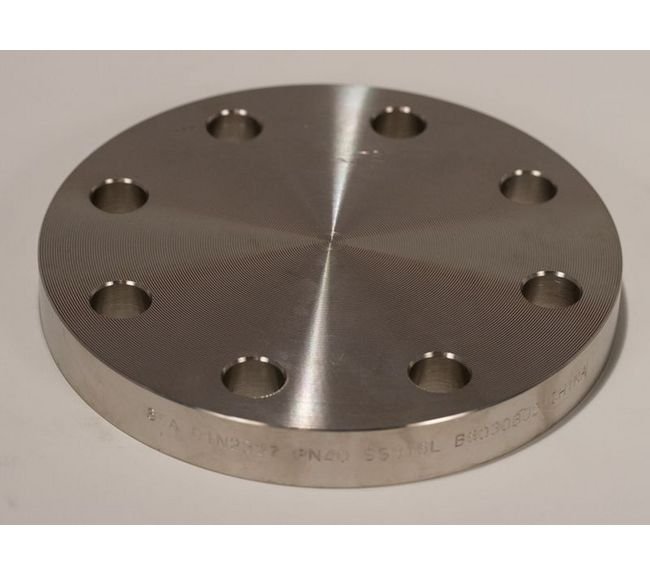

Stainless Steel Blind Flanges JIS 16K, Size 125 - 5"

Name: Stainless Steel Blind Flanges JIS 16K, Size 125 - 5"
Brand: World Wide Metric, Inc.
SKU: FLA-bf4640
Price: 79.99 USD
Availability: OutOfStock

SKU:FLA-bf4640

High-quality Stainless Steel Blind Flanges JIS 16K, ensuring robust sealing under pressure. Size 125 - 5"

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

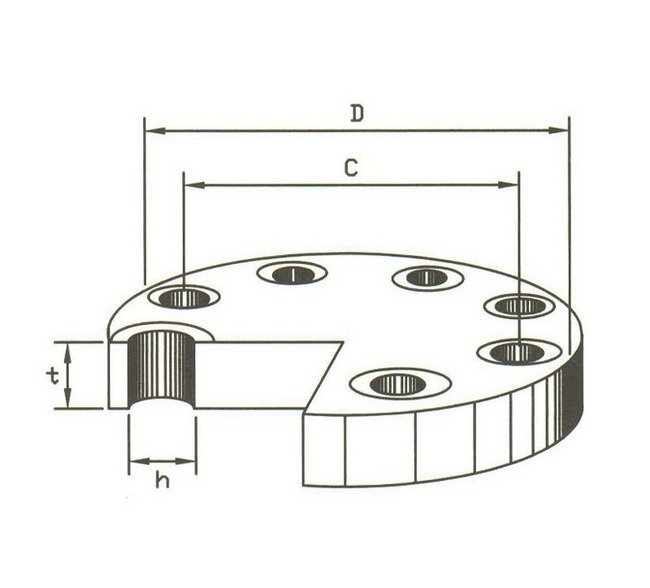

Our Stainless Steel Blind Flanges JIS 16K are crafted for durability and precision. With a size range of 125 - 5", these flanges offer a reliable sealing solution under JIS 16K pressure standards. Constructed with high-quality stainless steel, they boast a diameter (D) of 270 mm, pitch circle diameter (C) of 225 mm, and 8 robust bolts ensuring secure installation. Weighing 9.2 kg, these flanges are designed with a thickness (t) of 22 mm and a height (h) of 25 mm, making them ideal for critical applications where strength and performance are paramount.

Product Specifications

Specifications C

225 mm

Specifications D

270 mm

Specifications H

25 mm

Specifications Material

Stainless Steel

Specifications Number Of Bolts

Specifications Pressure

JIS 16K

Specifications Size

125 - 5"

Specifications T

22 mm

Specifications Weight

9.2 kg

Stainless Steel Blind Flanges JIS 16K, Size 125 - 5"
