Stainless Steel Bolt Anchor Shackle - Suncor 316-NM Grade
Stainless Steel Bolt Anchor Shackle - Suncor 316-NM Grade
SKU:STA-a12dbe
Premium 316-NM Stainless Steel Bolt Anchor Shackle with Oversize Bolt for Marine Use - Suncor Brand
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

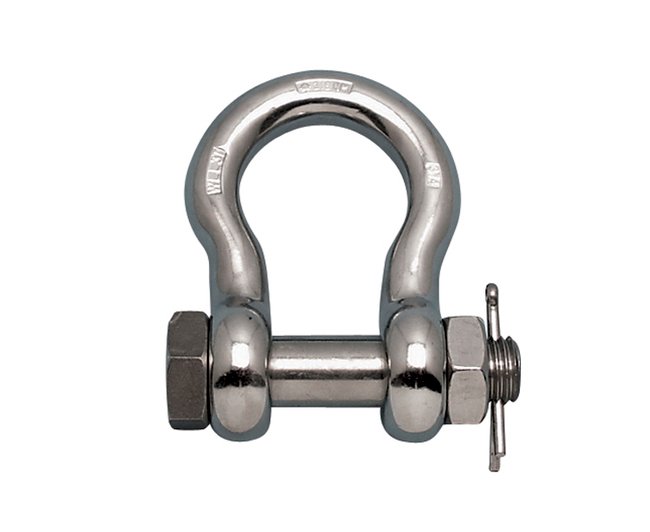

The Stainless Steel Bolt Anchor Shackle by Suncor is a premium-grade 316-NM stainless steel shackle designed with an oversize bolt for enhanced durability. Ideal for saltwater applications, this anchor shackle securely connects anchors to chains or swivels with a high working load limit of 3000 lb. Crafted through drop forging, it meets ASME B30.26-2010, Fed. Spec. RR-C-271, MIL-DTL-32655, and Type IVA specifications, ensuring reliability and performance in marine environments.
Product Specifications

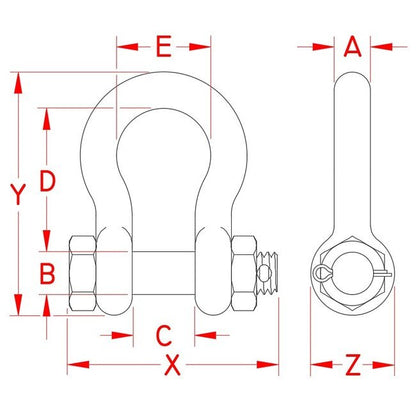

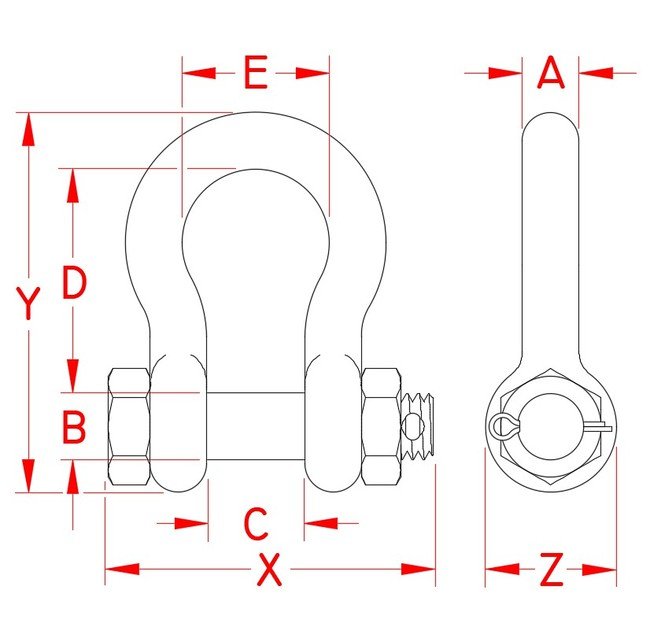

Specifications Dimension A
1/2 in
Specifications Dimension B
0.63 in
Specifications Dimension C
0.82 in
Specifications Dimension D
1.83 in
Specifications Dimension E
1.20 in
Specifications Dimension X
2.86 in
Specifications Dimension Y
3.21 in
Specifications Dimension Z
1.16 in
Specifications Fabrication Type
Drop Forged
Specifications Load Rated
Yes
Specifications Made In
Import
Specifications Material
316-NM Stainless Steel
Specifications Mil Spec
Yes
Specifications Specification
ASME B30.26-2010 | Class 3 | Fed. Spec. RR-C-271 | MIL-DTL-32655 | Type IVA
Specifications Suncor Exclusive
Yes
Specifications Weight
0.76 lb
Specifications Working Load Limit Wll
3000 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
