Stainless Steel Bottom Mount for 7/8" and 1" Tubes
Stainless Steel Bottom Mount for 7/8" and 1" Tubes
SKU:STA-1b1850
Heavy-duty Stainless Steel Bottom Mount for 7/8" & 1" tubes, grade 316 steel for maximum corrosion resistance. Ideal for sailboat and powerboat railings.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Stainless Steel Bottom Mount for 7/8" and 1" Tubes
$24.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Bottom Mount for 7/8" and 1" Tubes
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

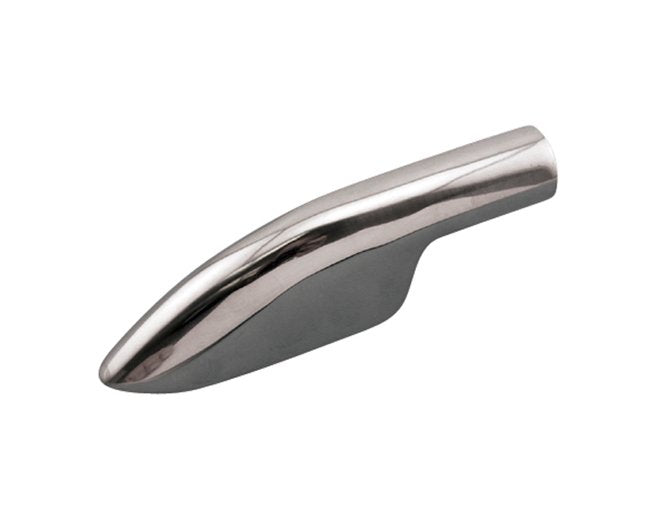

The Stainless Steel Bottom Mount is a heavy-duty rail fitting designed for sailboat and powerboat railings. Crafted from grade 316 stainless steel, it ensures maximum corrosion resistance and durability. This precision cast mount allows for easy installation below the rail, accommodating both 7/8" and 1" diameter tubes seamlessly. Suncor-branded and import-made, it meets industry standards for quality and performance.

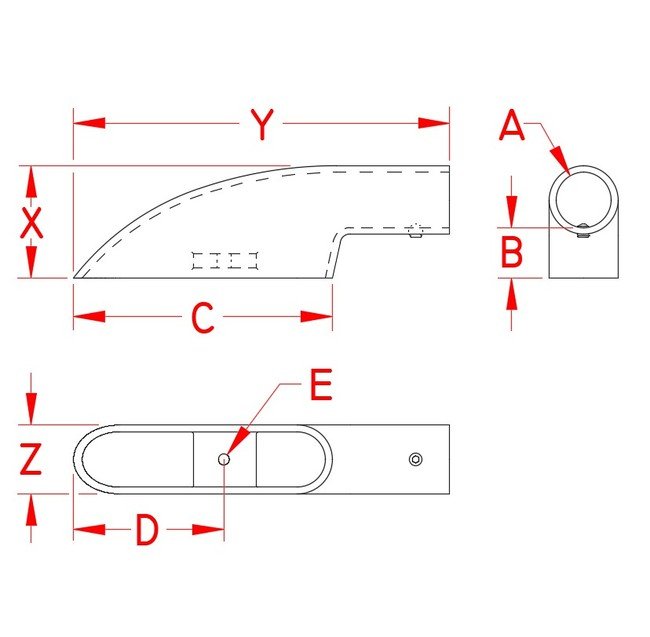

Product Specifications
Specifications Dimension A
1 in
Specifications Dimension B
0.96 in
Specifications Dimension C
4.78 in
Specifications Dimension D
2.85 in
Specifications Dimension E
6 mm
Specifications Dimension X
2.08 in
Specifications Dimension Y
6.75 in
Specifications Dimension Z
1.47 in
Specifications Fabrication Type
Precision Cast
Specifications Fastener
(1) 6 mm
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.96 lb
CAGE
1CXX6
NAICS
332510
PSC
5340
