Stainless Steel Bow Shackle with Captive Pin

Stainless Steel Bow Shackle with Captive Pin

SKU:STA-71b8da

Premium stainless steel bow shackle with self-locking captive pin for marine applications. Grade 316 stainless steel, precision cast, and high durability.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Stainless Steel Bow Shackle with Captive Pin

Stainless Steel Bow Shackle with Captive Pin

$24.99

Quantity: 1

Claim Your Seller Account

Stainless Steel Bow Shackle with Captive Pin

Stainless Steel Bow Shackle with Captive Pin

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

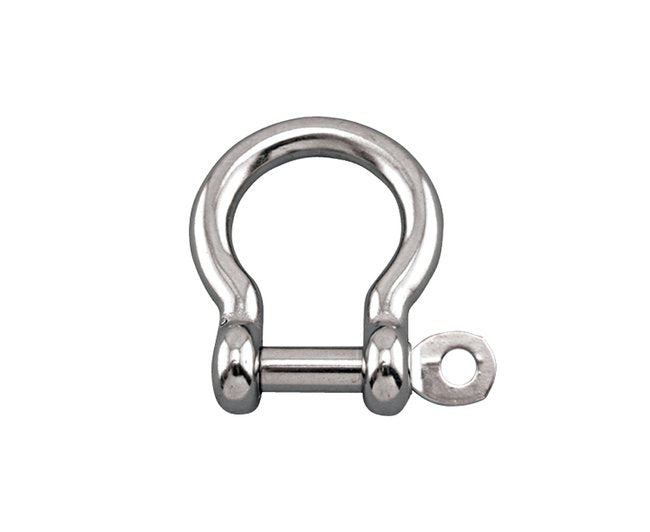

The Stainless Steel Bow Shackle with Captive Pin features a self-locking pin design to prevent accidental disengagement, making it ideal for marine applications. Crafted from grade 316 stainless steel for superior corrosion resistance and durability. This precision cast shackle ensures reliability and safety, with a working load limit of 1200 lb. Available in various sizes to suit different needs, this shackle is a trusted choice for secure fastening in challenging environments.

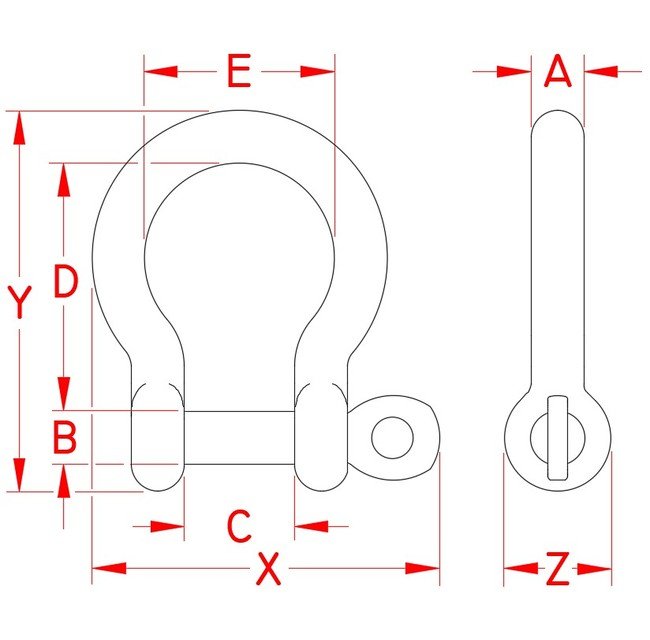

Product Specifications

Specifications Dimension A
3/8 in
Specifications Dimension B
0.39 in
Specifications Dimension C
0.79 in
Specifications Dimension D
1.77 in
Specifications Dimension E
1-1/4 in
Specifications Dimension X
2.21 in
Specifications Dimension Y
2.76 in
Specifications Dimension Z
0.80 in
Specifications Fabrication Type
Precision Cast
Specifications Made In
Import
Specifications Material
316 Stainless Steel
Specifications Weight
0.29 lb
Specifications Working Load Limit Wll
1200 lb
CAGE
1CXX6
NAICS
332999
PSC
4030
