Premium grade 316 stainless steel Bow Shackle with screw pin, ideal for marine and industrial applications.

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

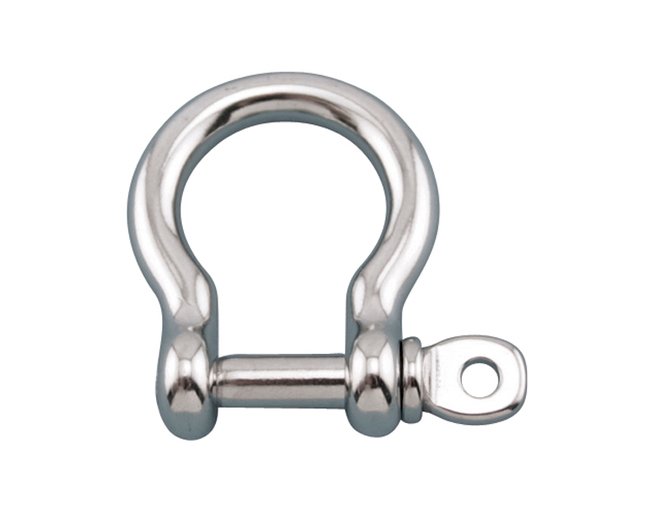

Upgrade your marine and industrial applications with the Suncor Stainless Steel Bow Shackle featuring a precision-cast grade 316 stainless steel construction. With a wide range of sizes from 5/32" to 1-1/4" and a robust Working Load Limit (WLL) of 2,500 lb, this shackle is built for maximum corrosion resistance and durability. Ideal for heavy-duty lifting and rigging tasks, this shackle meets strict industry standards, ensuring reliability and safety in every use.

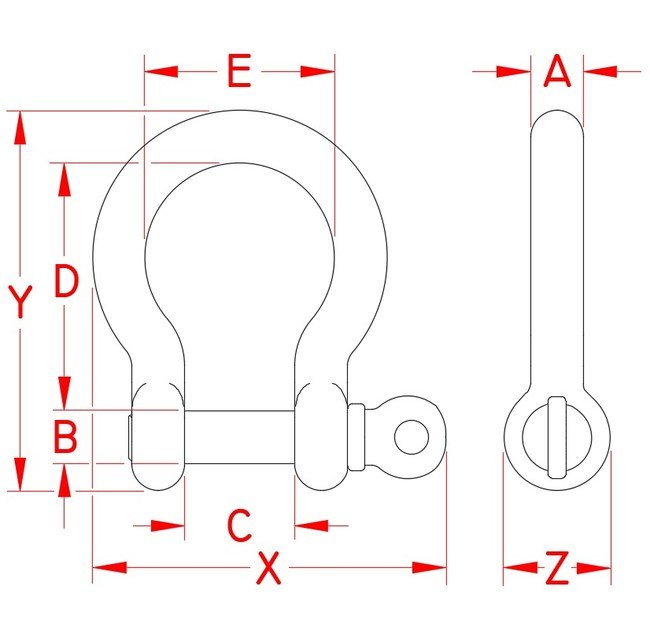

Product Specifications

Specifications Dimension A

1/2 in

Specifications Dimension B

0.51 in

Specifications Dimension C

1.04 in

Specifications Dimension D

2.33 in

Specifications Dimension E

1.85 in

Specifications Dimension X

3.17 in

Specifications Dimension Y

3.66 in

Specifications Dimension Z

1.07 in

Specifications Fabrication Type

Precision Cast

Specifications Made In

Import

Specifications Material

316 Stainless Steel

Specifications Weight

0.78 lb

Specifications Working Load Limit Wll

2,500 lb

CAGE

1CXX6

NAICS

332999

PSC

4030
