Stainless Steel Bulkhead Connection (Body Only) with Elastomer Seal - BSP Parallel - DIN 2353 Compliant

Name: Stainless Steel Bulkhead Connection (Body Only) with Elastomer Seal - BSP Parallel - DIN 2353 Compliant
Brand: World Wide Metric, Inc.
SKU: FIT-6e44e0
Price: 49.99 USD
Availability: OutOfStock

SKU:FIT-6e44e0

High-pressure stainless steel Bulkhead Connection Body with elastomer seal, DIN 2353 compliant. Operates at 315 bar.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

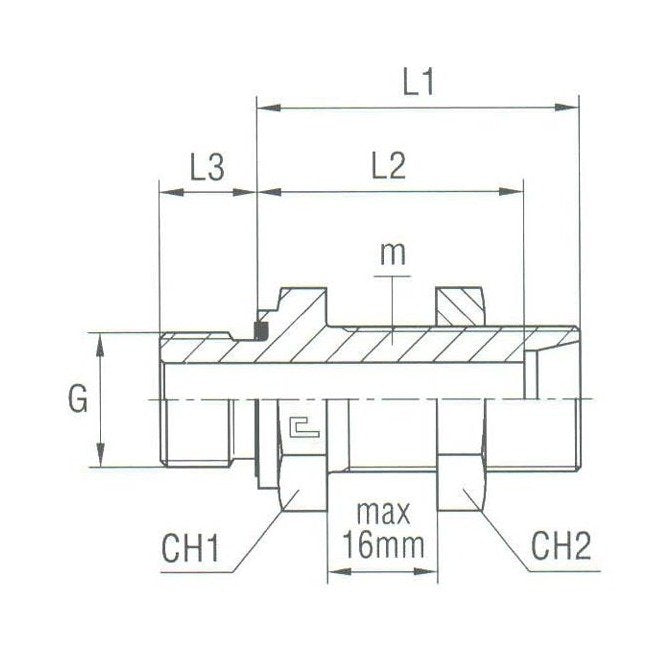

The Stainless Steel Bulkhead Connection Body provides heavy-duty performance with a nominal operating pressure of 315 bar. Precision-engineered with a 38.0mm tube diameter, this fitting features a durable elastomer seal and meets DIN 2353 standards. The 52x2 m - Thread Size and 1 1/2 G - Thread Size ensure secure connections, while the compact design with precise dimensions (L1: 72.0mm, L2: 56mm, L3: 22.0mm, CH1: 60mm, CH2: 65mm) guarantees reliable operation in critical applications.

Product Specifications

Specifications Ch1

60 mm

Specifications Ch2

65 mm

Specifications G Thread Size

1 1/2

Specifications L1

72.0 mm

Specifications L2

56 mm

Specifications L3

22.0 mm

Specifications Material

Stainless Steel

Specifications M Thread Size

52x2

Specifications Nominal Operating Pressure

315 bar

Specifications Pressure

Heavy Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

38.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

Stainless Steel Bulkhead Connection (Body Only) with Elastomer Seal - BSP Parallel - DIN 2353 Compliant
